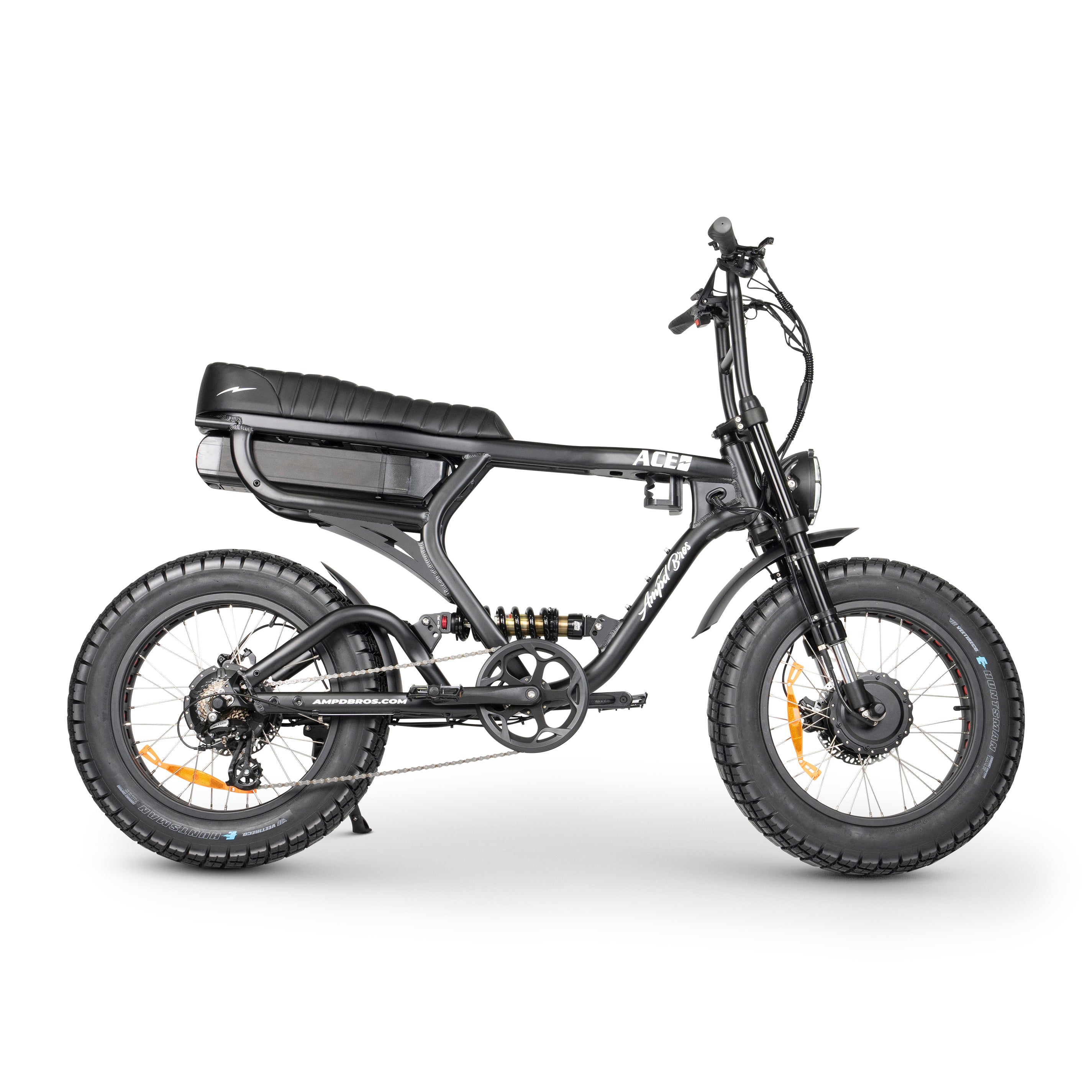

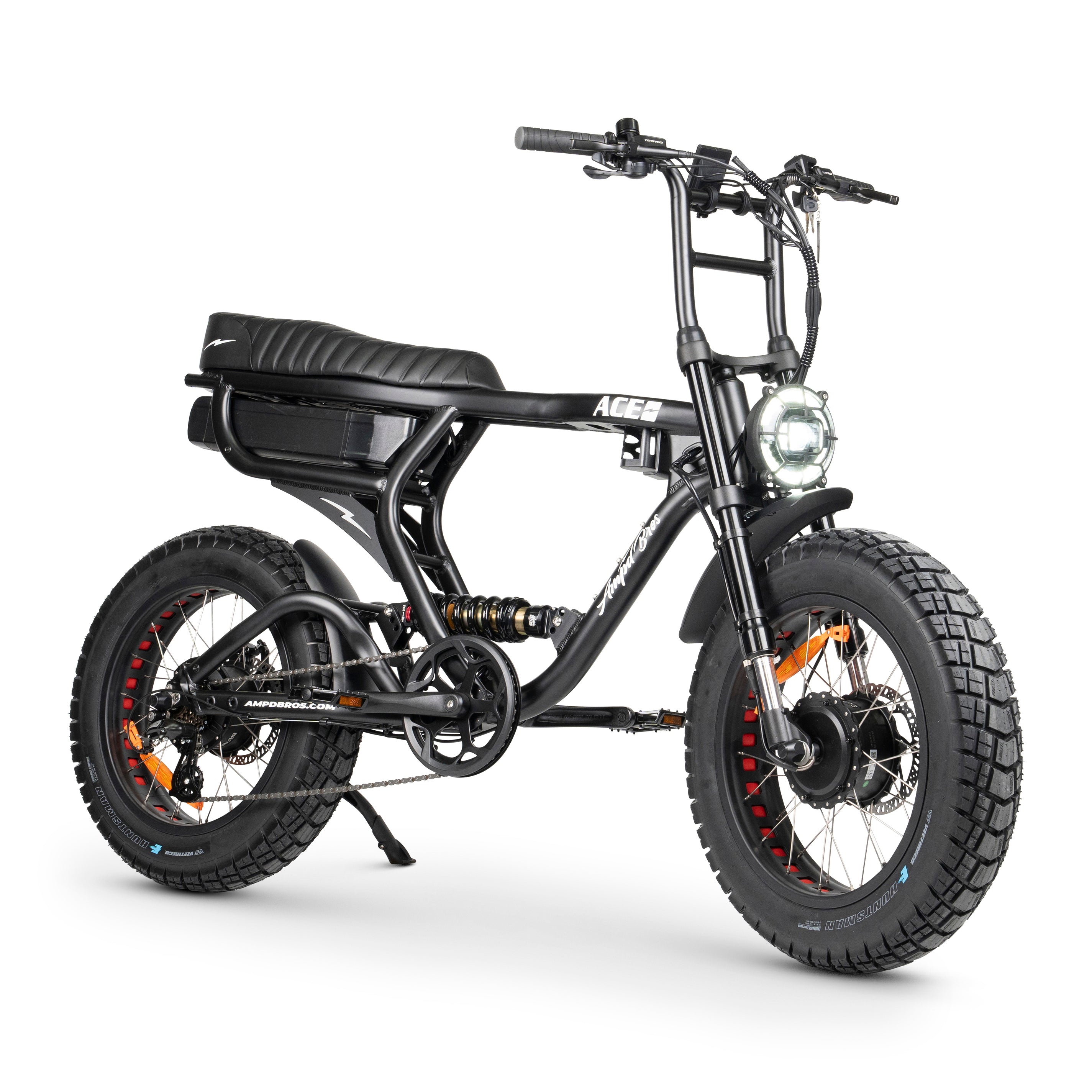

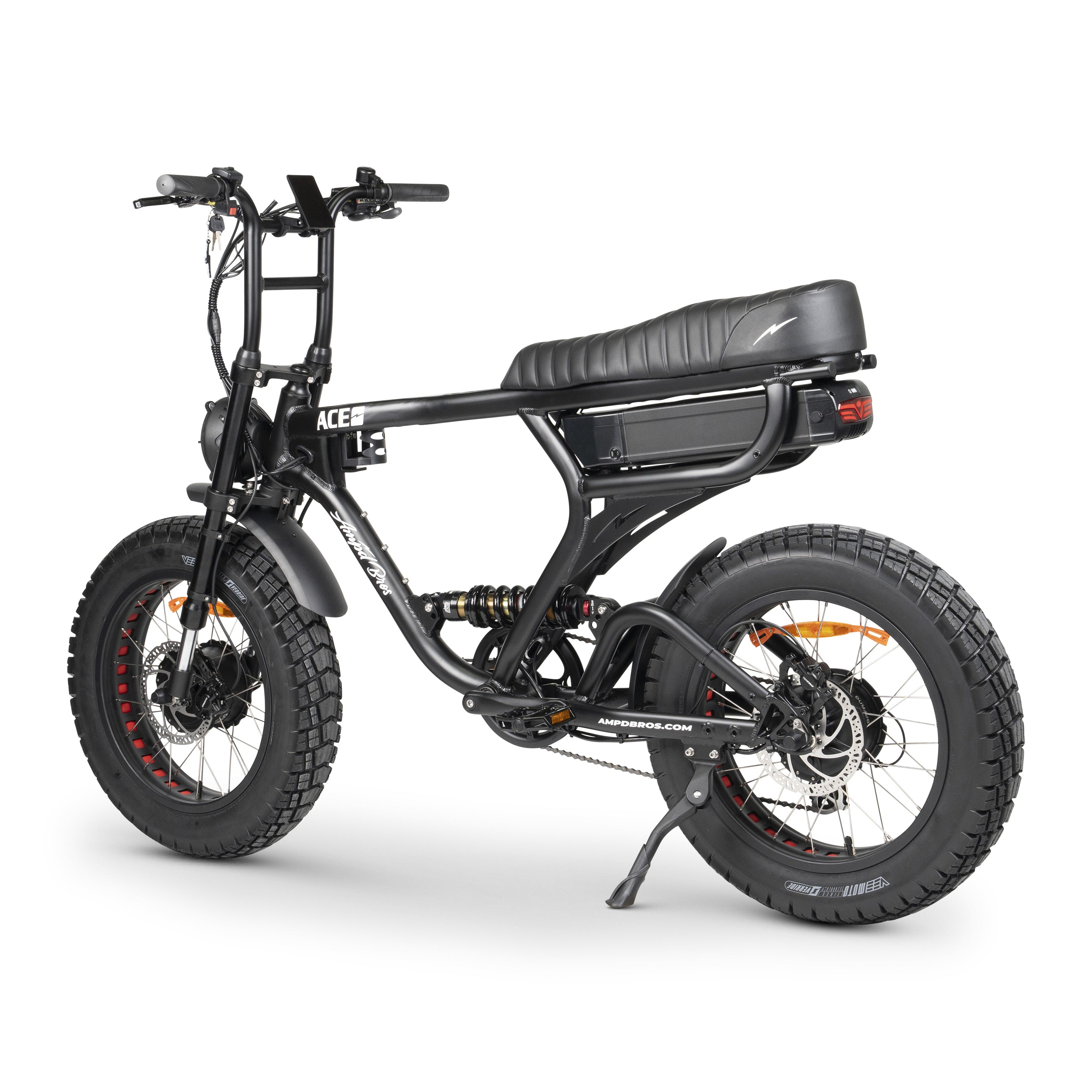

ACE-X Demon Dual Motor Electric Bike
Color:Black
Pickup currently unavailable at Move Bikes Shop
ACE-X Demon Dual Motor Electric Bike
Black
Move Bikes Shop
Pickup currently unavailable
640 Crown Street
Surry Hills NSW 2010
Australia
| Weight | 43 kg |
|---|---|
| Frame Style |
STEP OVER |
| Motor Power |
2000W |
| Battery |
48V 25ah, 1200wh |
| Battery Range | Upto
80 km |
| Throttle |
YES |
| Colour |
BLACK, GALAXY, GREY |
| Brakes |
HYDRAULIC |
| Front Supension |
YES |
| Rack |
NO |
| Brand |
Ampd Brothers |
- Speed & Range
- Range: 100km* (Single Motor Only)
- Pro Top Speed: 25km/h (or unlock up to 50km/h for private property use)
- Demon Top Speed: Up to 50km/h+ (off-road private property use only)
- Battery
- Standard: 48V / 1,200Wh, 25AH
- Cells: Samsung Premium 21700 Lithium cells

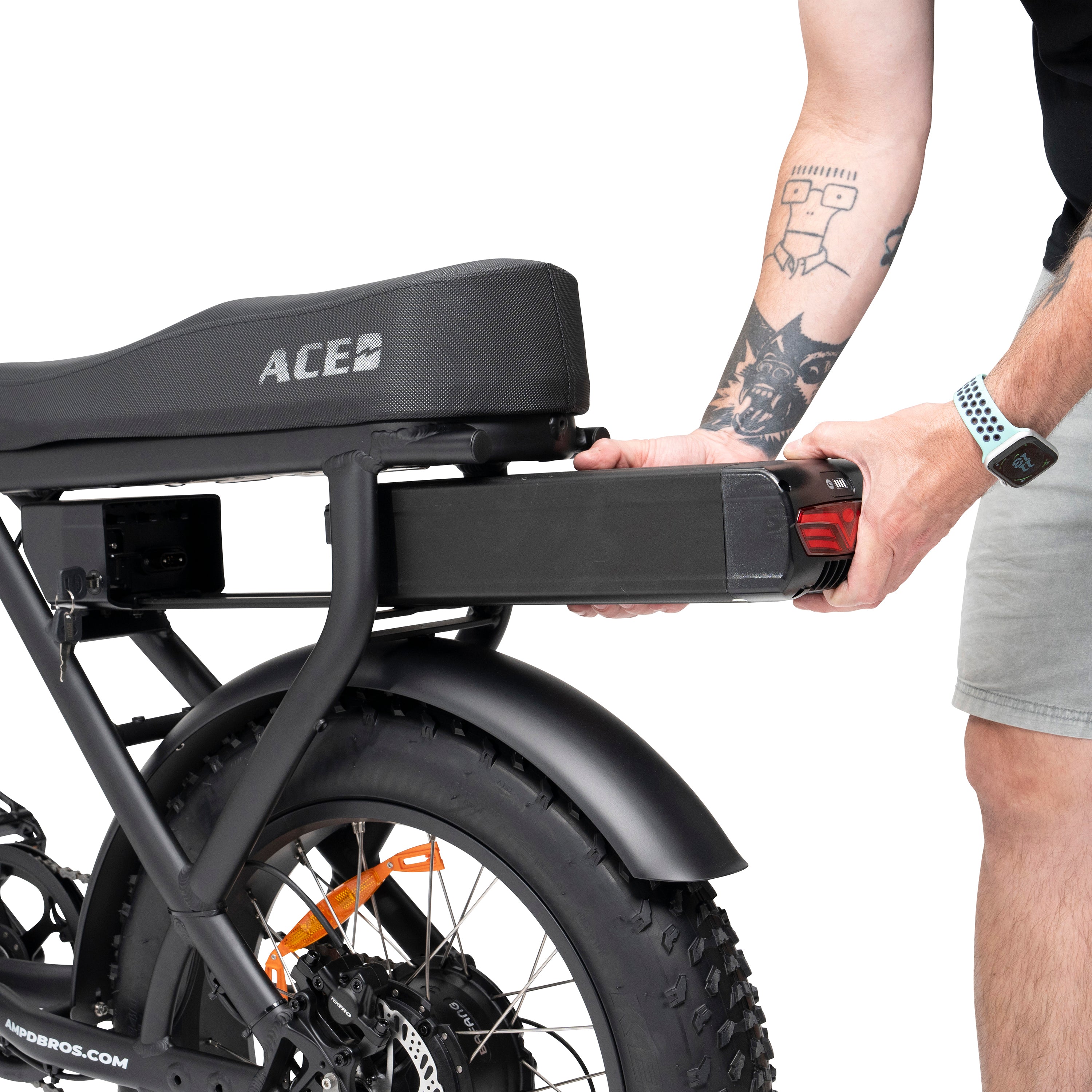

- Charging: Battery is removable and can be charged in bike or separately
- Ride Modes
-
Mode 1 (Pedal Assist): Adjustable pedal assist performance settings from 1-5
- Can also be changed to 1-3 or 1-9
-
Mode 2 (Walk Mode): Idles bike up to 6km/h
- Assist with moving bike by holding the "-" button on the keypad
- Mode 3 (Throttle Mode): Available when optioned with the Off Road Throttle Kit
- Features
- Hill Ability: Up to 30º Degree / 60% Incline PAS

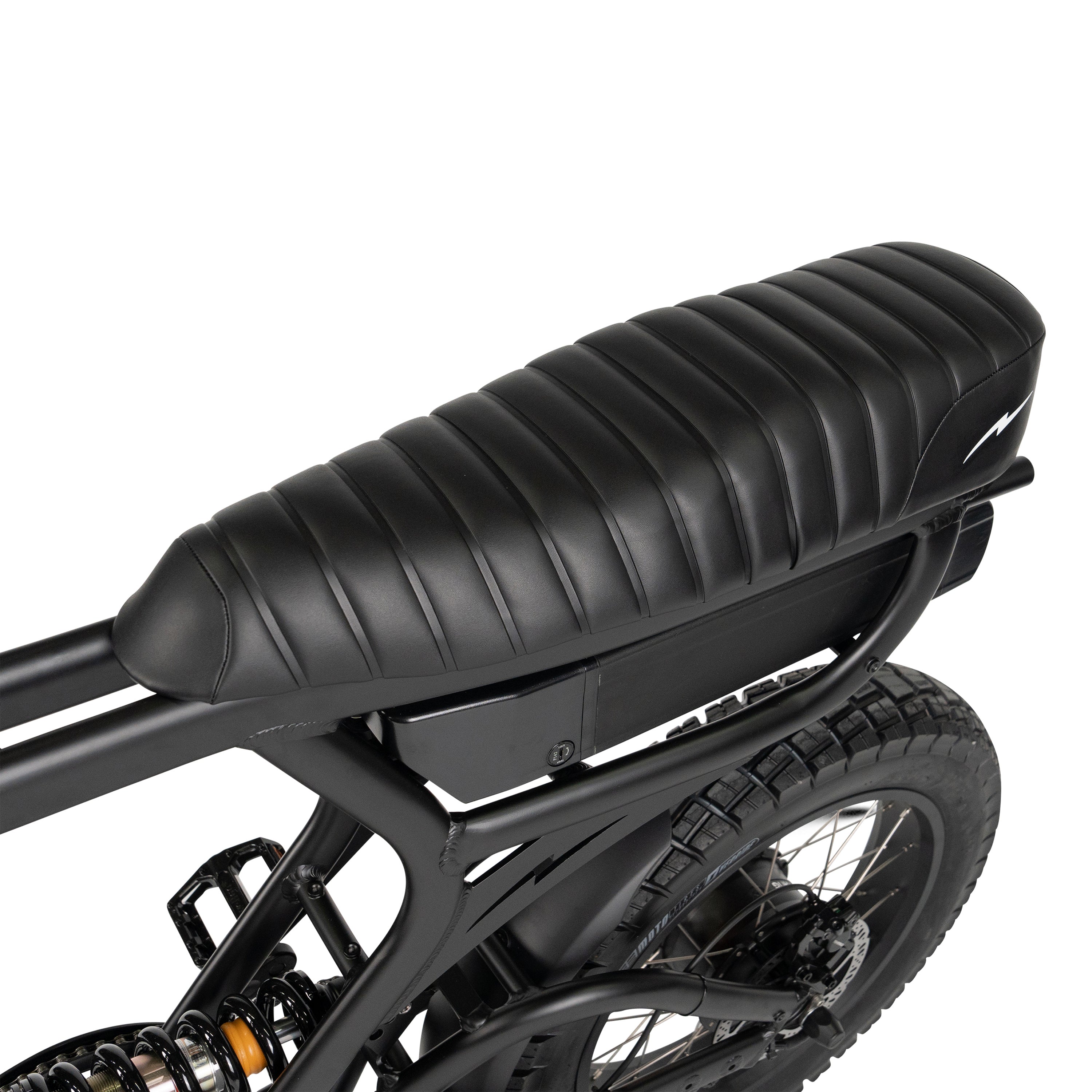

- Seat: Custom Large Quilted Plush Dual Seat for 2 Riders
- Warranty: 2 Years (1 Year on Batteries)

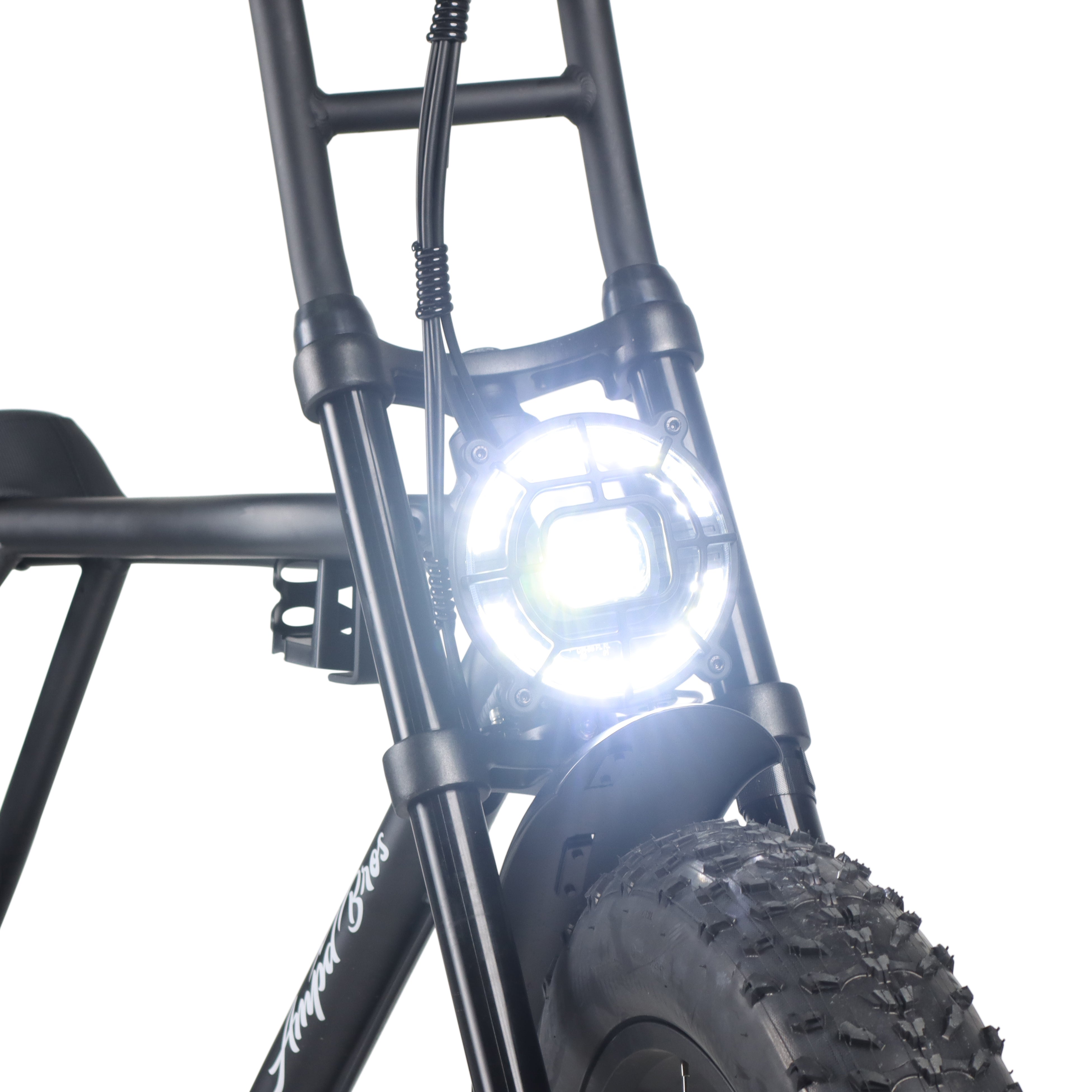

- Ace Pro Headlight: Ampd Bros Signature 800lm LED Light with DRL
- Demon Headlight: Upgraded PRO Front LED 1,700lm Headlight with DRL

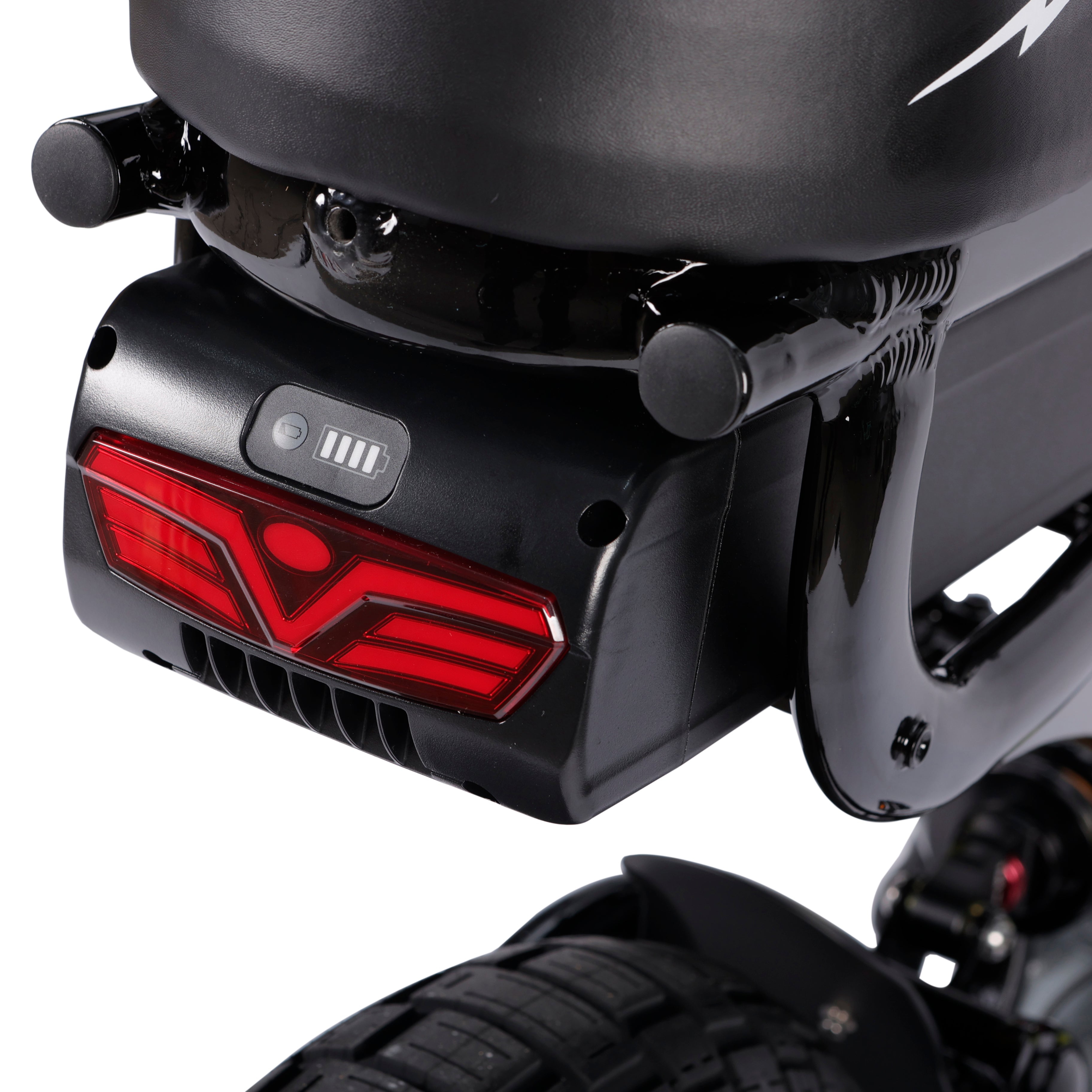

- Rear Lights: LED Brake Light inbuilt to battery pack
- Grips: Velo Wide Comfort
- Bell: Yes

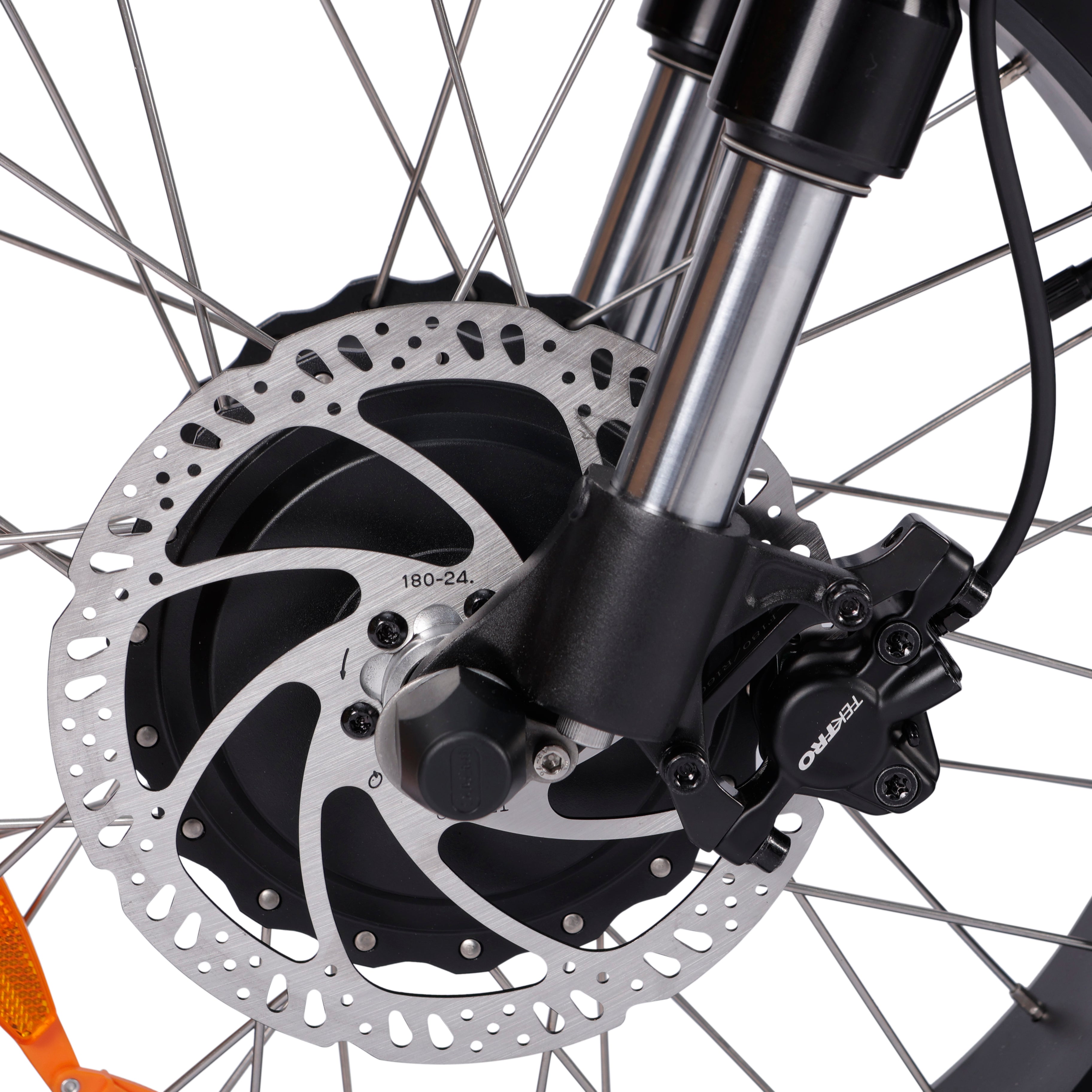

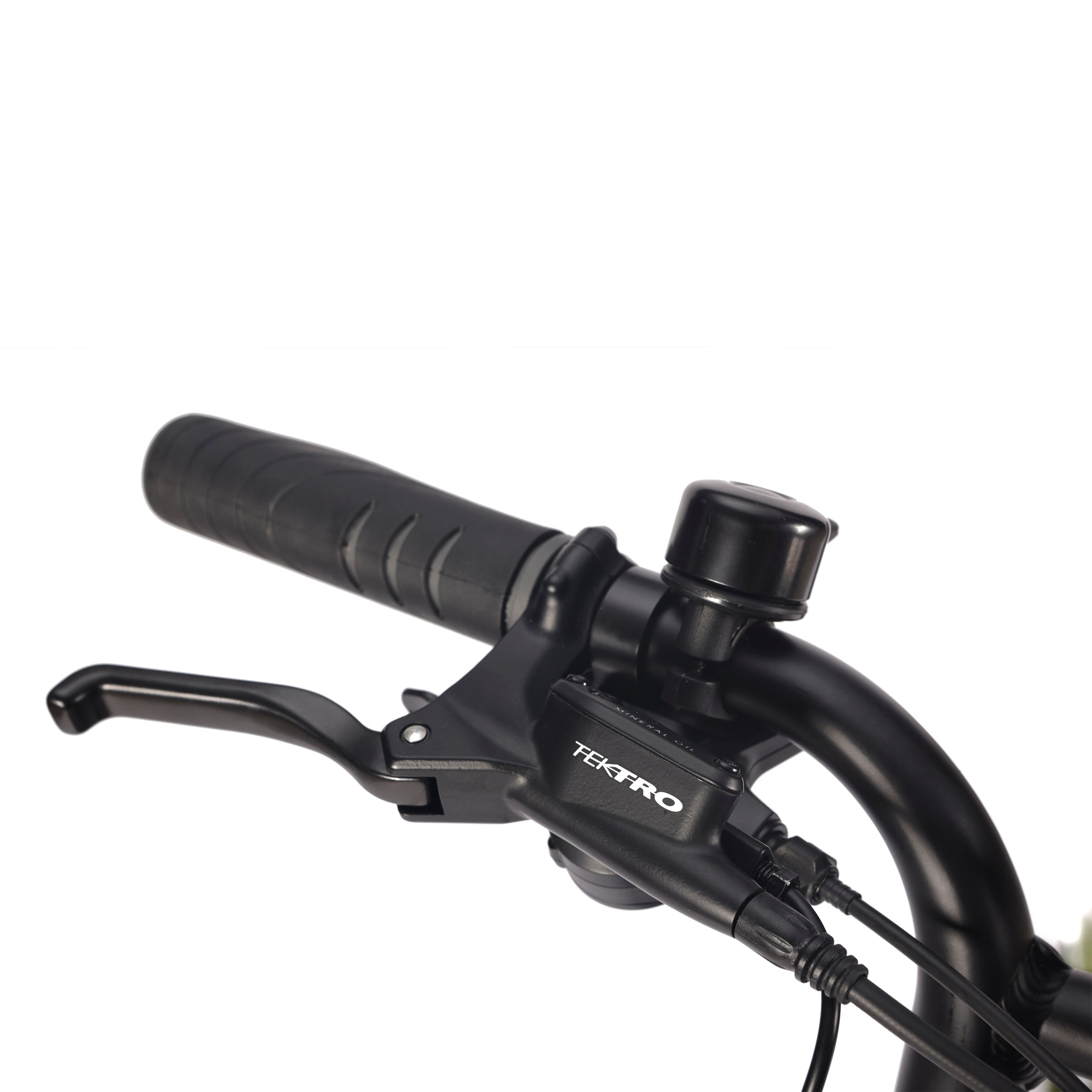

- Brakes
- Standard: Tektro Hydraulic Disc
- Discs: 180mm
- E-Brakes: Yes, Motor Safety Cut Off

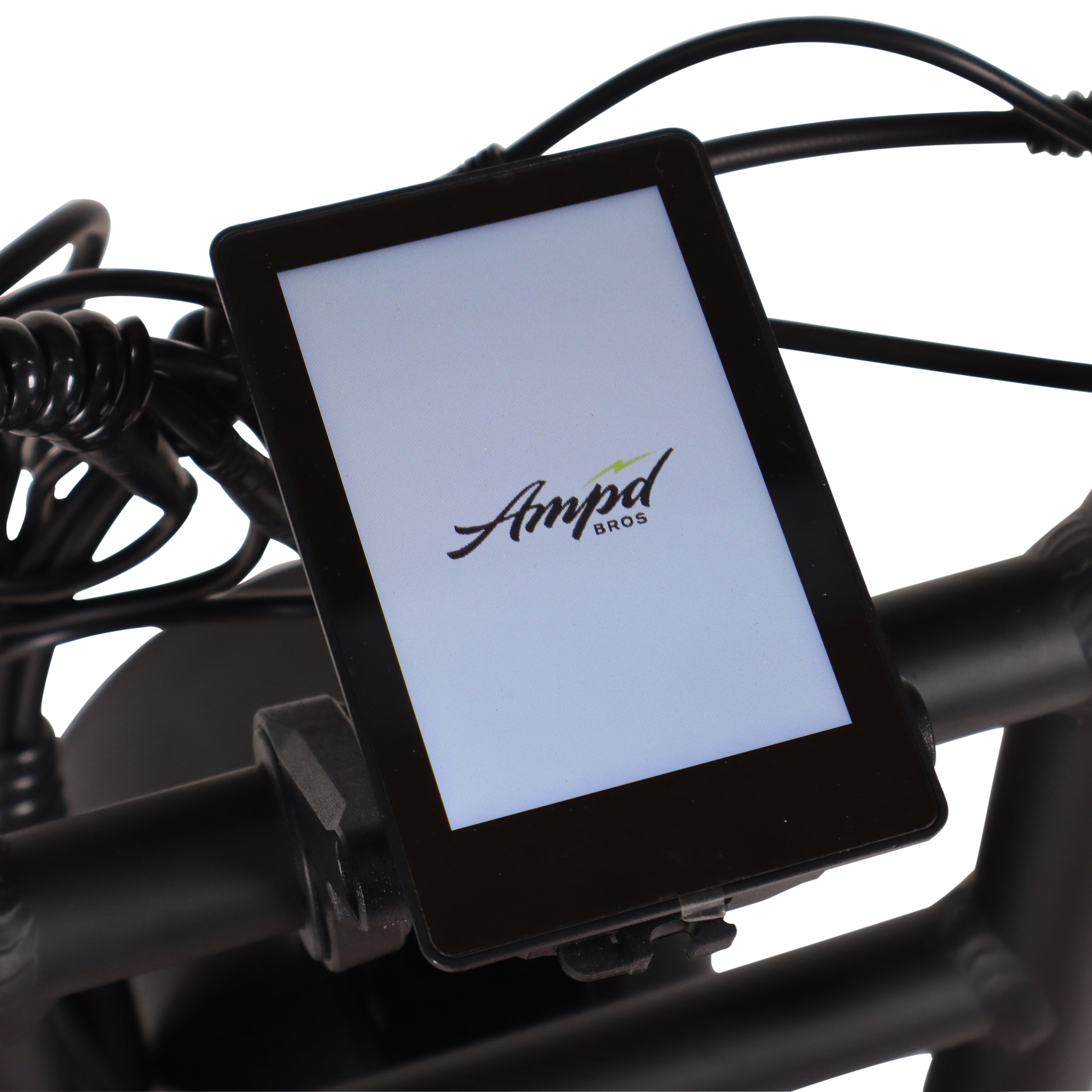

- Display

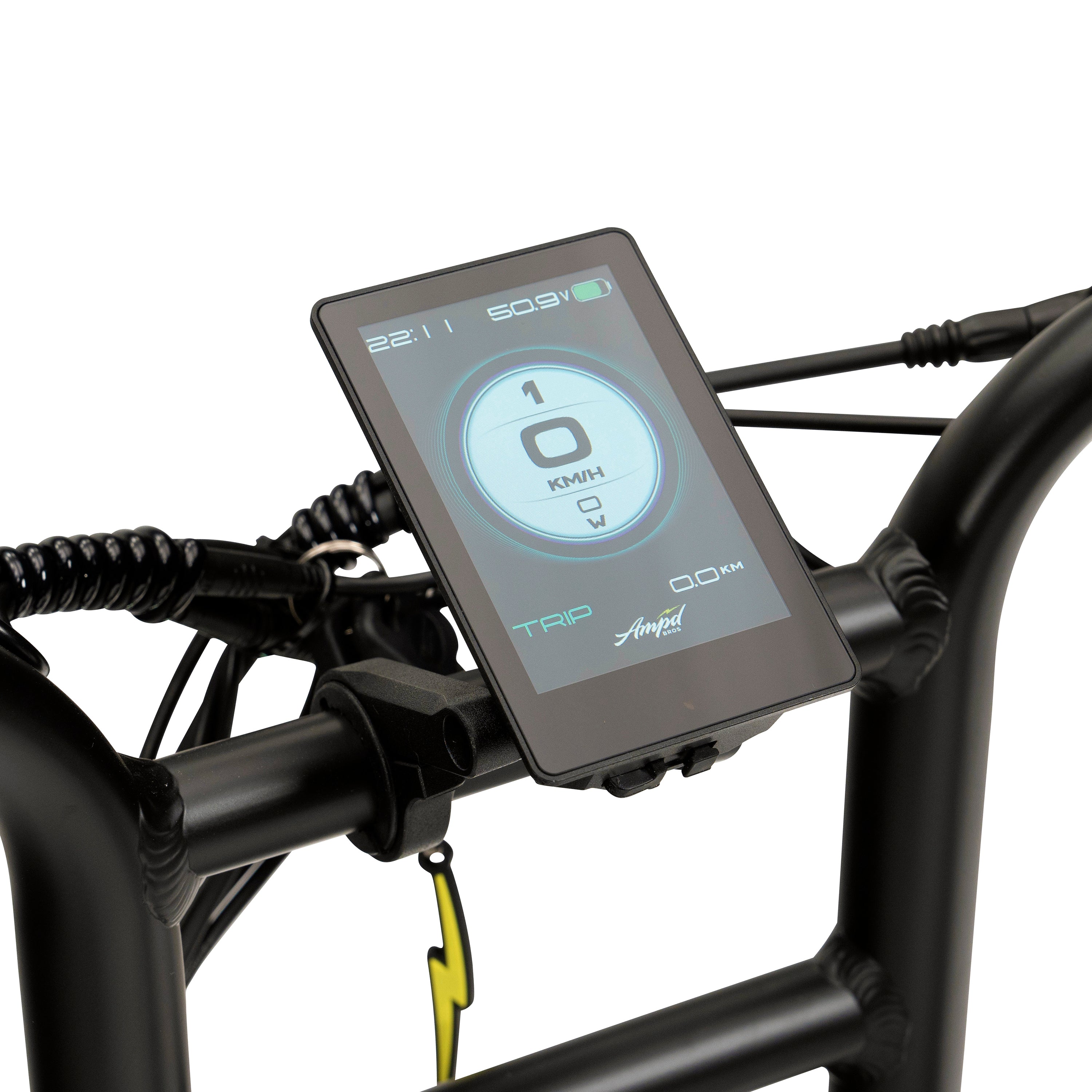

- Type: Colour LCD Multi-Function with USB, ODO, Trip, Battery Level, Speed etc
- Controller
- Type: Ampd Brothers Custom - Best-in-class power density and state-of-the-art motor control algorithms
- Drivetrain
- Motor Type: Bafang RMG 062D & 063D Latest Generation (Released 2023)
- Ace Pro Motor: Single Rear Hub Drive 1,000W
- Ace Demon Motors: AWD Dual Drive Hub 1,000W Motors Front & Rear (2,000W Total)
- Ace Pro Torque: High Torque 95n.m
- Ace Demon Torque: High Torque 190n.m (Combined)
- Transmission: Shimano 7 Speed with Rapid Fire Micro Shifter
- Derailleur: Shimano Altus
- Pedals: Wellgo Alloy - Black
- Chain: KMC Z Series High Performance
- Construction

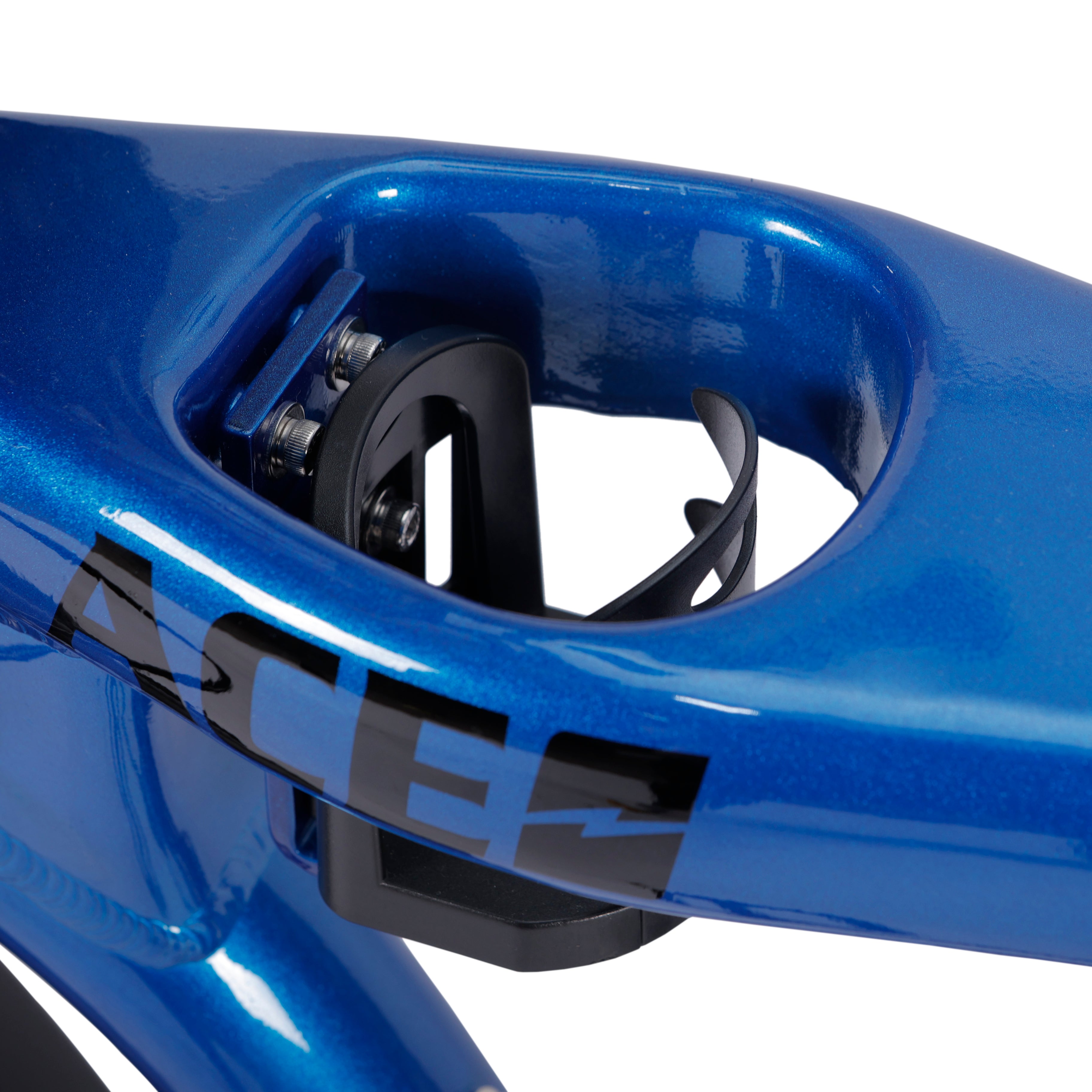

- Frame: Aluminium - "X" Step Over Bar Design
- Handlebars: Aluminium Motorcycle Inspired with Adjustable Height
- Fenders: Matte Black Aluminium
- Suspension

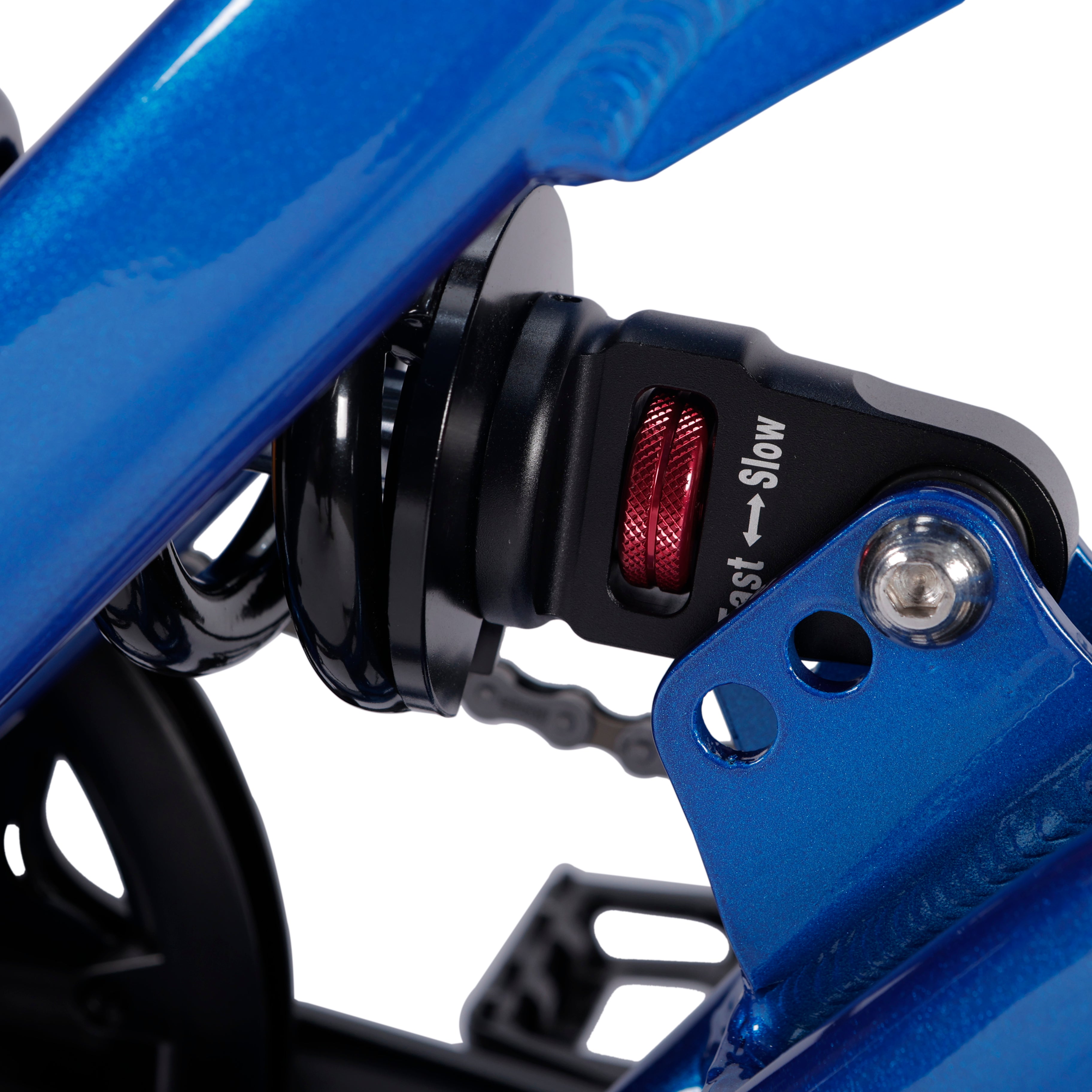

- Standard: Front Independent & Rear Adjustable DNM
- Wheels & Tyres
- Tyres: 20x4.0" Vee Tire Huntsman Puncture Resistant All Terrain Tyres
- Charging
- Standard Charger: 8.5hrs for 25Ah Batteries with Standard 3A Included Charger
- Optional Charger: 5A Fast Charger Available

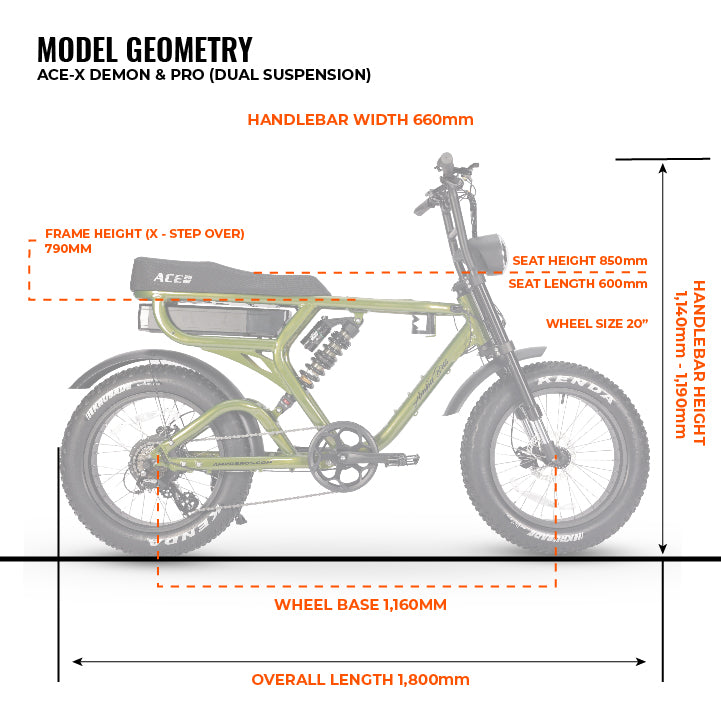

- Dimensions
- Overall Length: 1,800 mm
- Handlebar Height: 1,140 - 1,190 mm
- Handlebar Width: 660 mm
- Seat Height: 850 mm Fixed Height
- Seat Length: 600 mm
- Ground Clearance: 270 mm
- Wheel Base: 1,160 mm
- Rider Height: Ideal for Riders up to 200cm Tall
- Weights
- Battery (25Ah): 6.25 kg
- ACE Pro + Battery: 44.4 kg
- ACE Demon + Battery: 49 kg
- Max Loading: 150 kg
- Inclusions
- Box Contents: Bike, 48V Battery, 3A AUS Charger, Front Headlight, Basic Tool Kit, Manual, Pedals, Fenders, Seat & Kick Stand
- *Range achievable may vary based on loading, motor use, throttle/PAS, terrain, weather conditions, and many other factors.
