NCM ASPEN PLUS
NCM ASPEN PLUS
Move Bikes Shop
640 Crown Street
Surry Hills NSW 2010
Australia

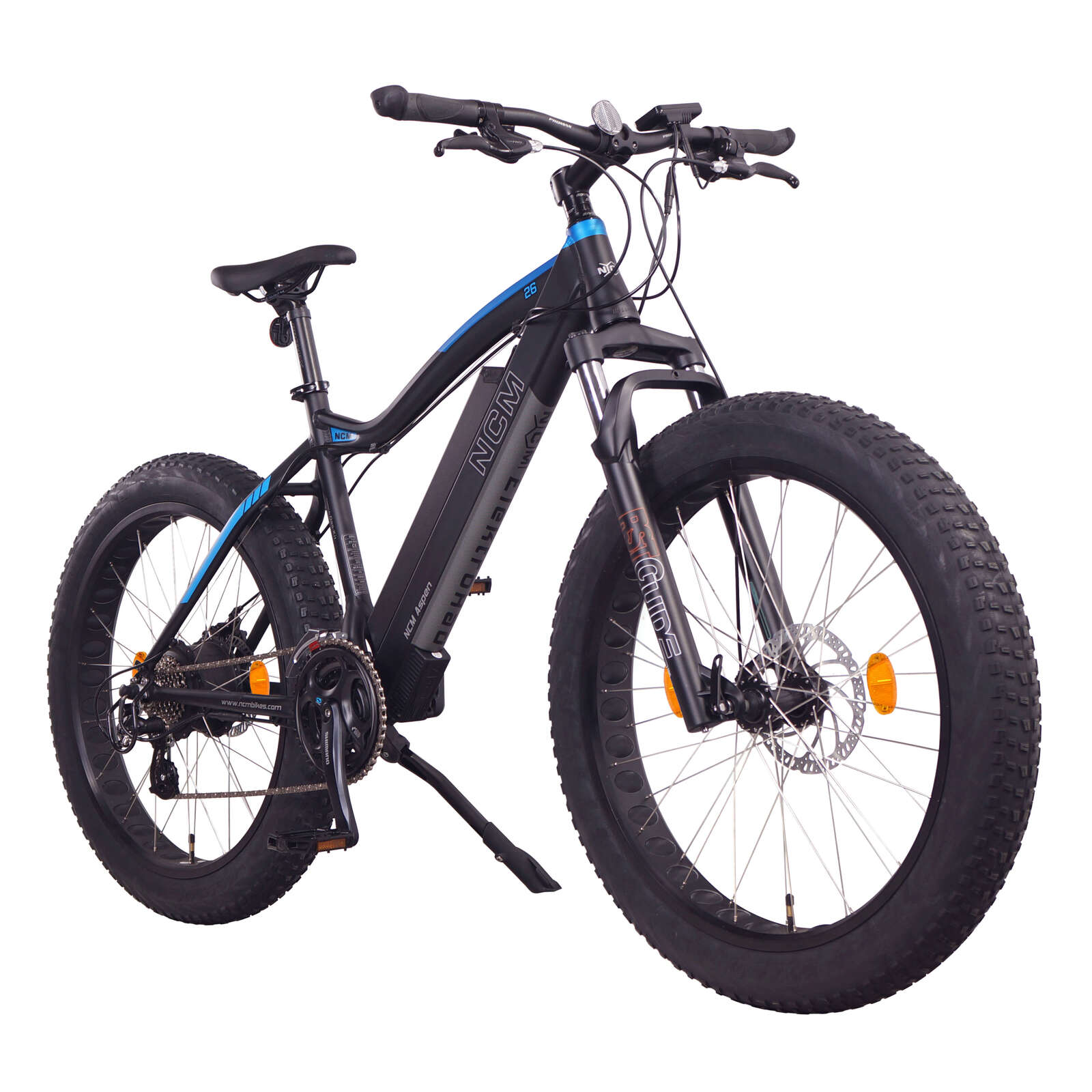

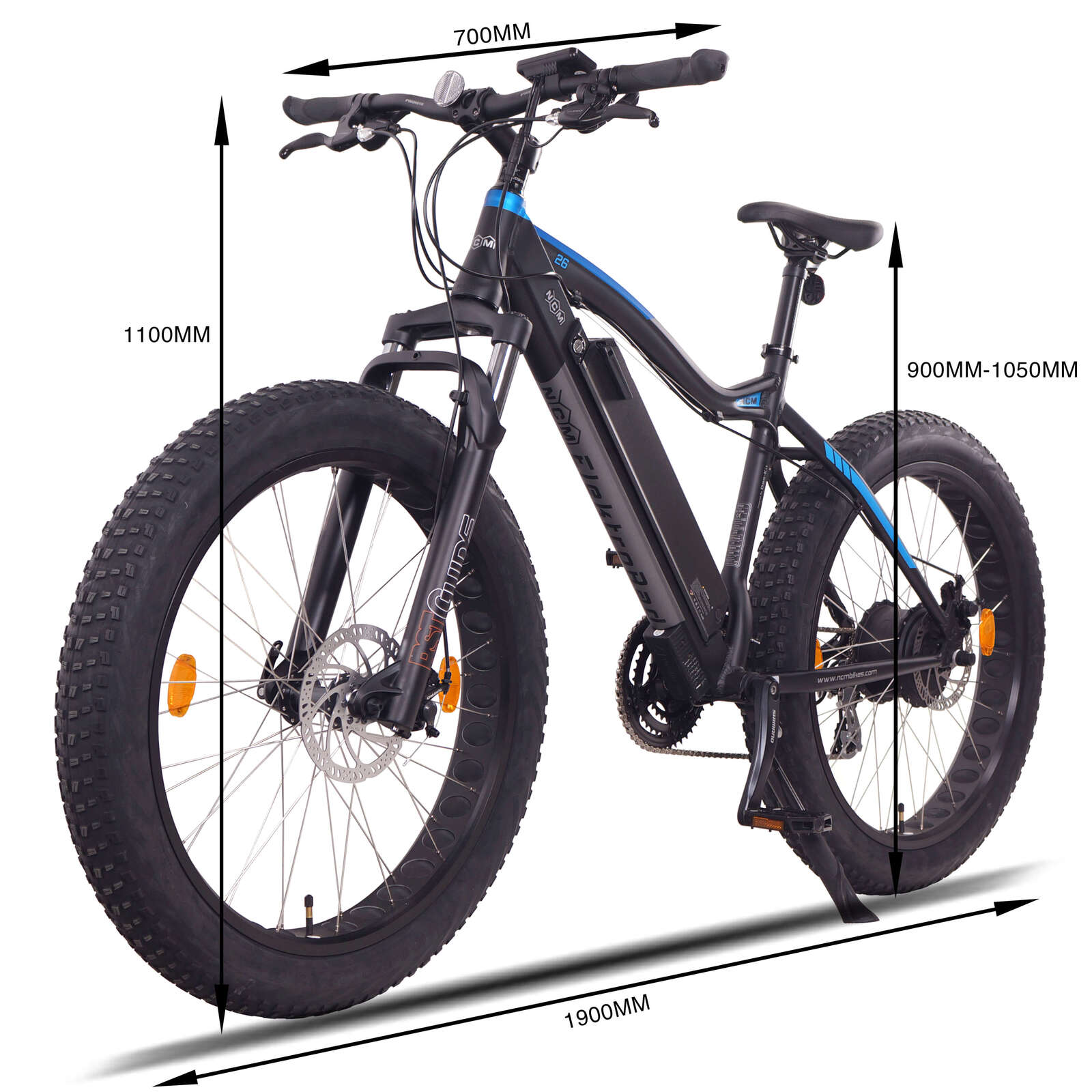

NCM Aspen Plus Fat Electric Bike, E-Bike with a large tire width, specially developed in Iceland for riding on snow and ice, is highly capable. Equipped with a sturdy aluminum frame, rigid handlebar, and ergonomic saddle, this E-MTB provides excellent performance. The large surface area of its fat tires makes it ideal for soft terrain such as sand and gravel, allowing for effective transfer of power to the road. Its high top tube adds to its strength and stability, creating a reliable and powerful ride.
BIKE COMPONENTS
Frame: Alu. 6061, 26"*18.9 inches
Suspension Fork: RST, Guid-TNL-26, Alu.

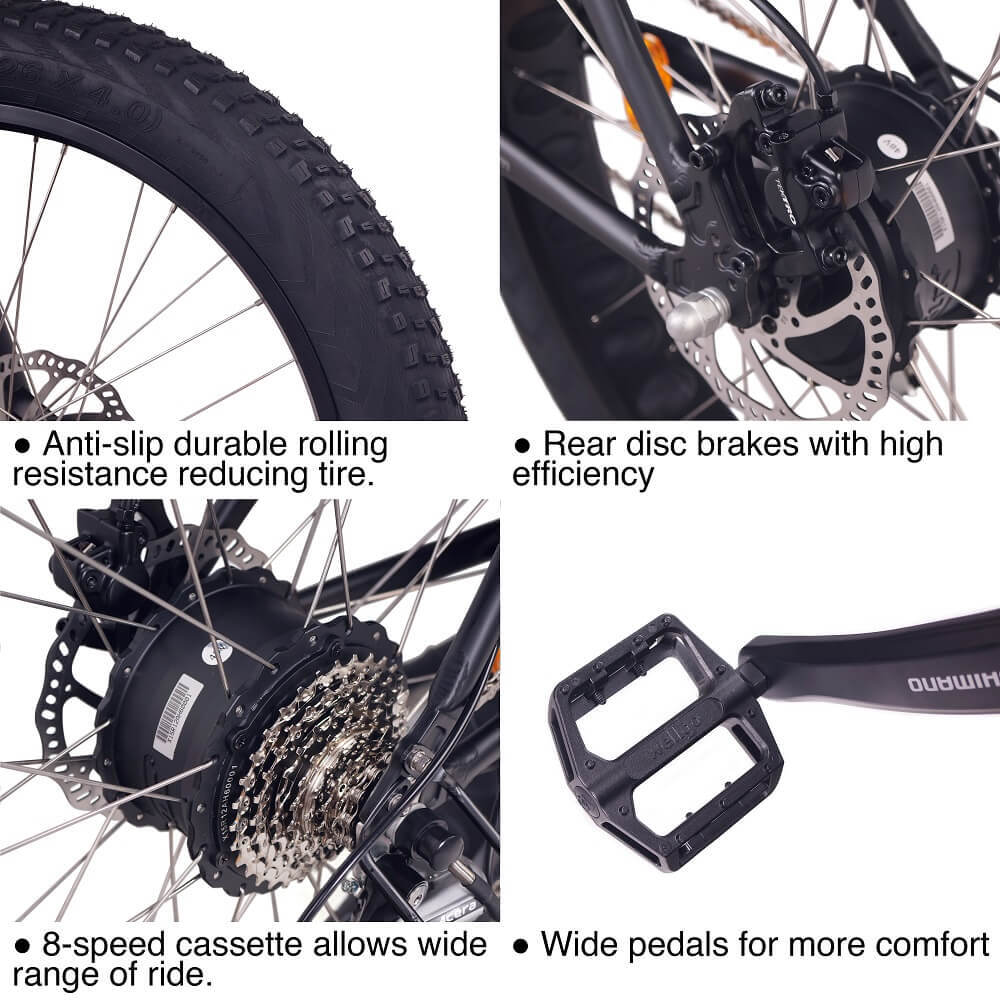

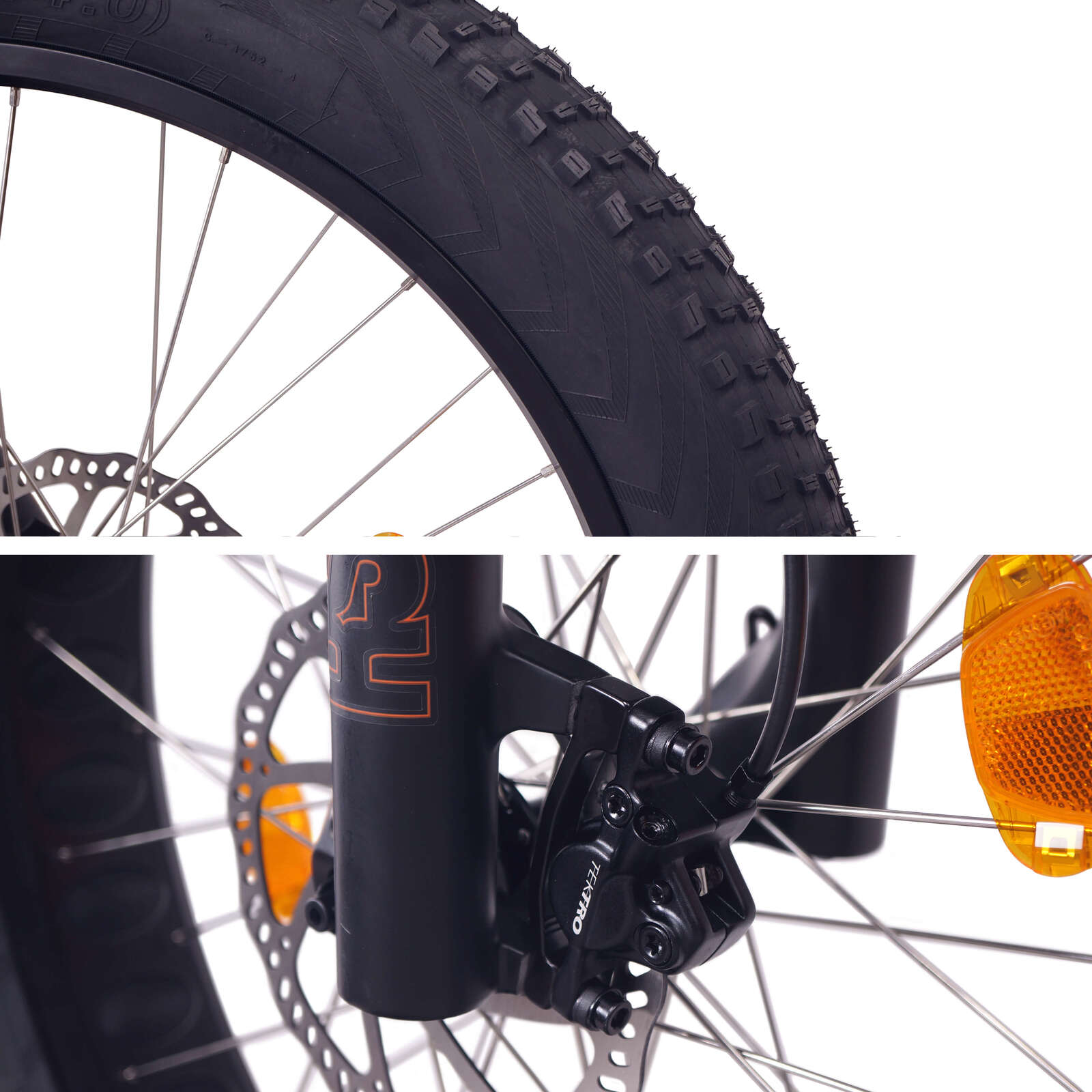

Brake: F/R: Tektro Hydraulic Disc Brakes,HD-E350
Freewheel: 8 Speed, 11-32T, Sliver
Tire: CST, C1752, 26"*4.0, Black
Saddle: Selle Royal, LOOKIN, Black
Stem: Promax. Alu.MA-471, Ext 90mm

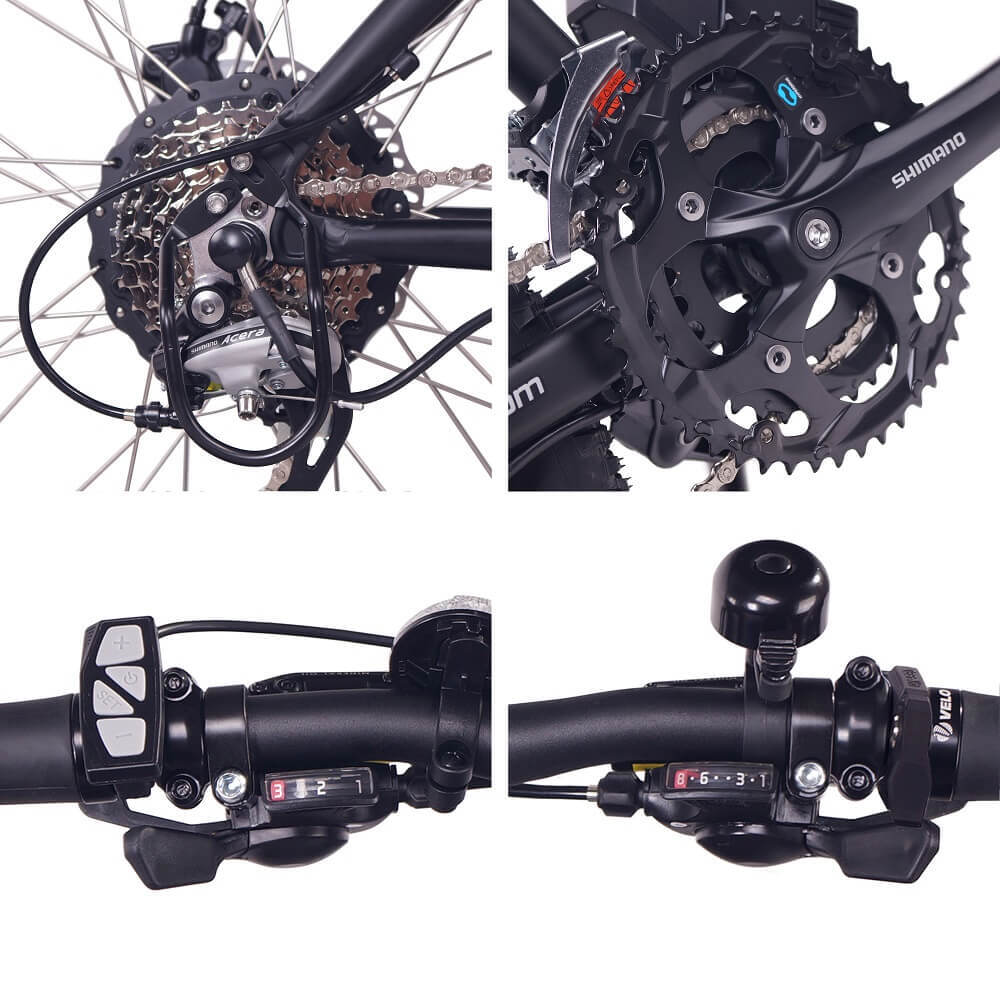

Crank: Shimano, Acrea, 28/38/48T
Shifter: Shiamno,Altus, F: M315-L, 3-Speed; R: M315-8R, 8-Speed
Front Derailleur: Shimano, Altus, M310, 3-Speed
Rear Derailleur: Shimano, Acera, M360, 8-Speed
ELECTRIC COMPONENTS

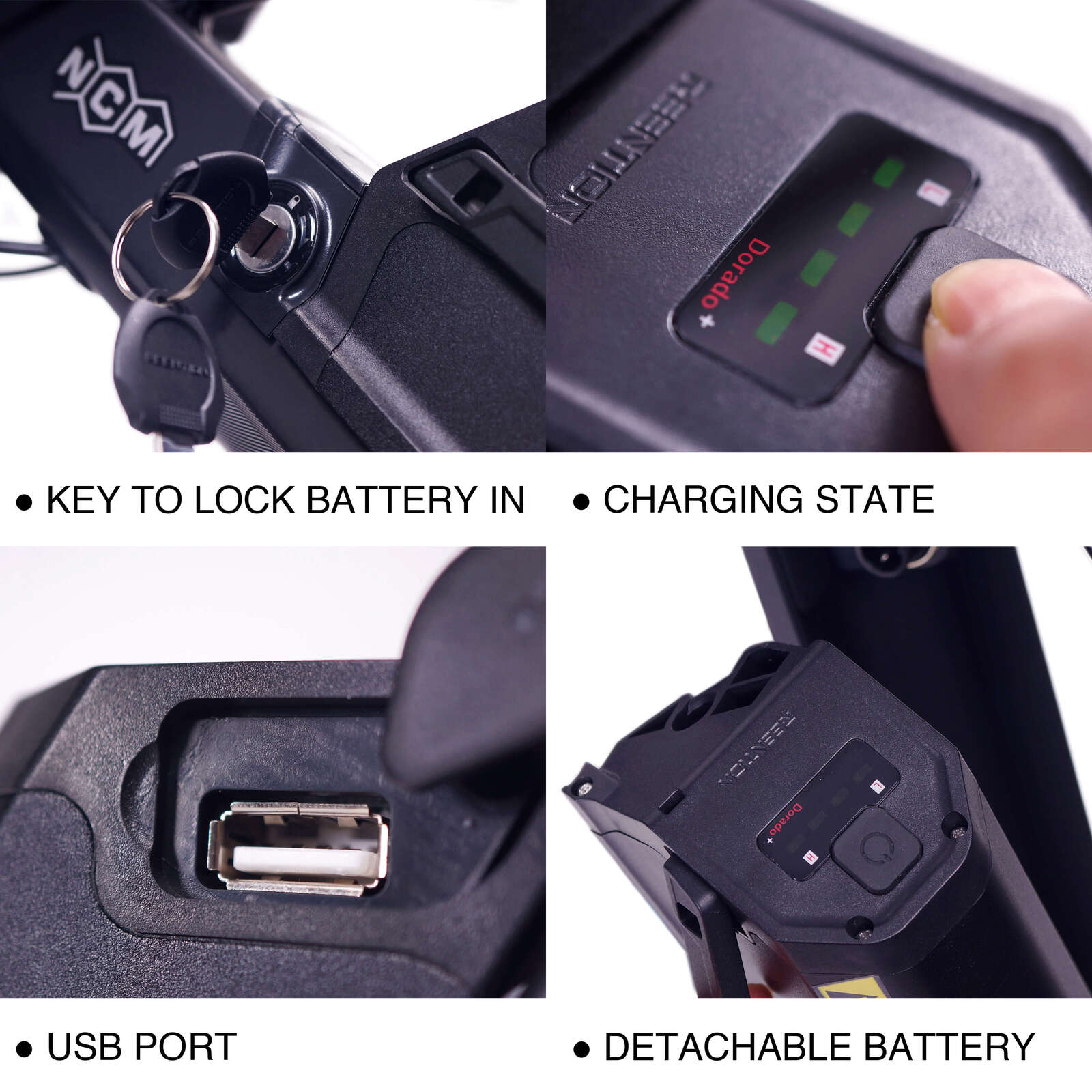

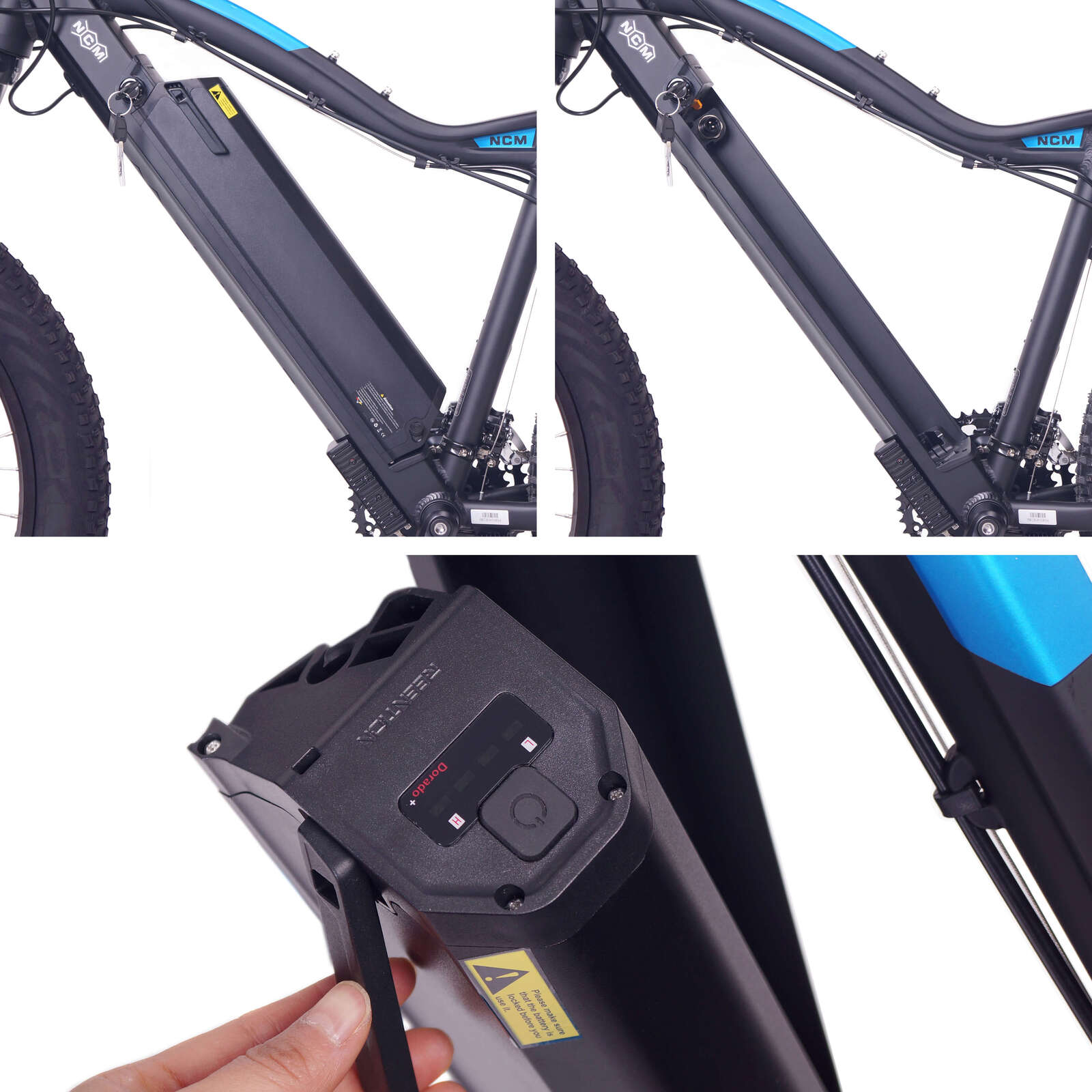

Battery: Das-Kit, i5-4816, 48V 16AH, 768WH

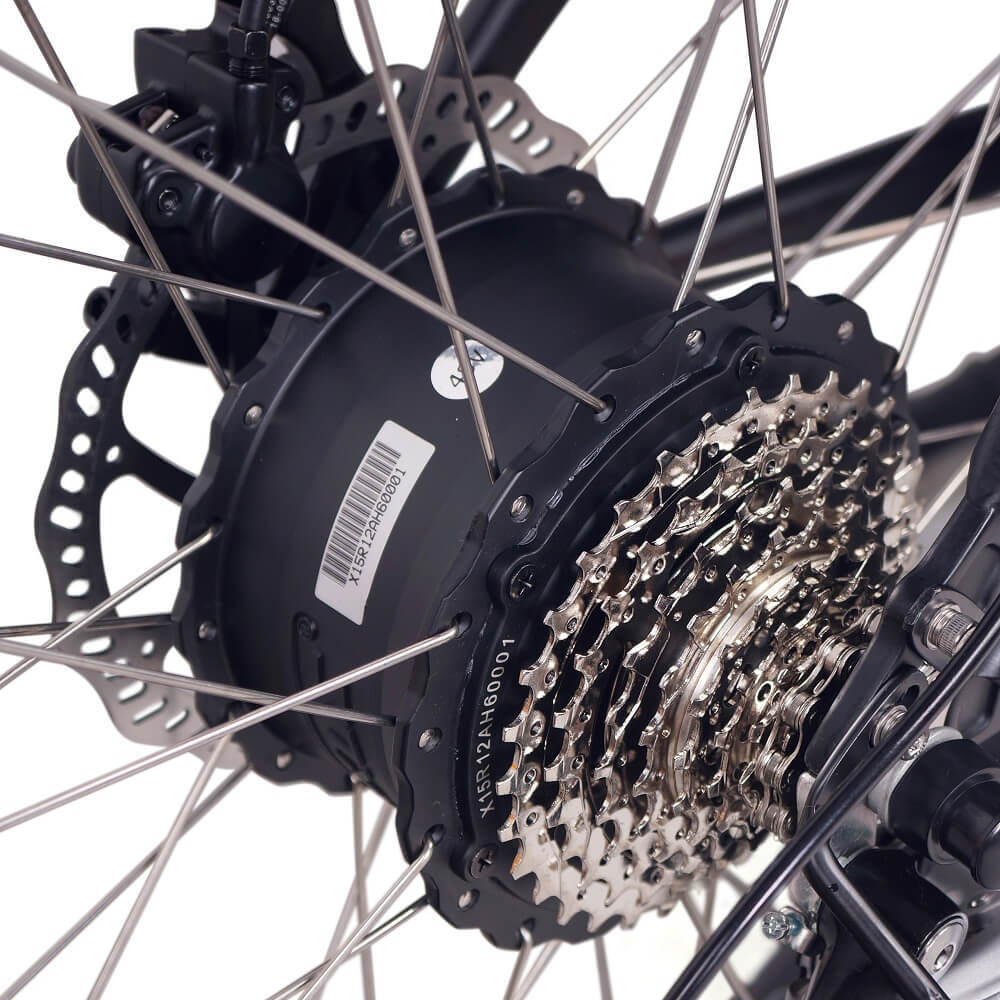

Motor: Das-Kit, X15-fat, Rear drive motor, 48V 250W - 750W, 25KM/H
Controller: Das-Kit, CT5-I5, 48V 18A
Charger: 48V 3A, US standard

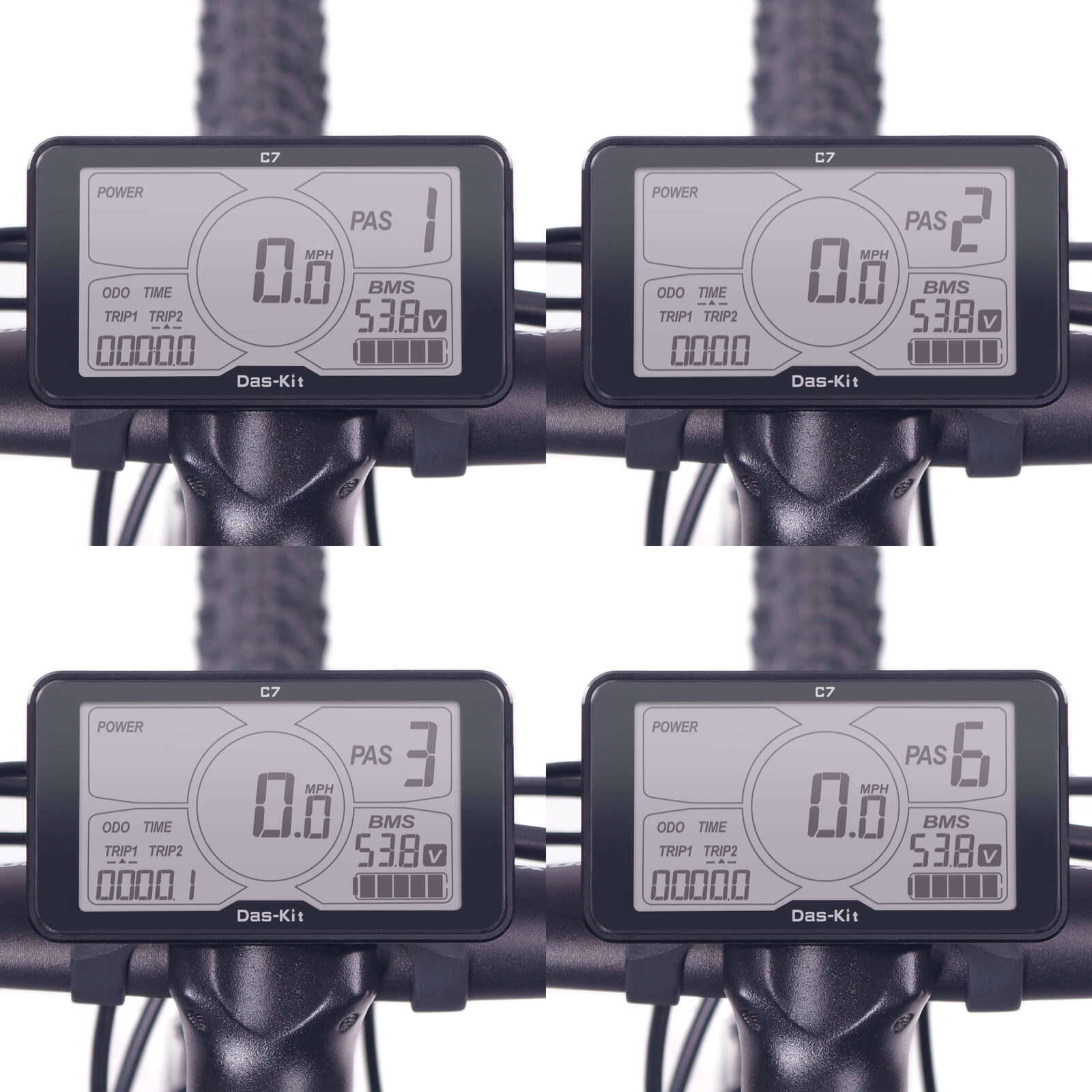

Display: Das-Kit, C7, 6 Levels
Front Light: Cateye, Front reflector
Rear Light: Cateye, Rear reflector
WEIGHT
Net Weight (with battery): 30.0kg
Battery Weight: 4.0kg
Max Load (driver+bike): 125.0kg
Warranty
- 1 year warranty on all electronic parts (including battery, motor, controller, display, lights)
- 2 year warranty on the bike frame
- Apart from manufacture defects that could be present, parts that wear due to normal use (such as tires, brake pads, chains, spokes, freewheel, tire puncture etc) are not included in the warranty but maybe replaced on a case by case basis within the first 6 months.
- Our bikes are water resistant but not waterproof. Water damage is not covered under warranty.

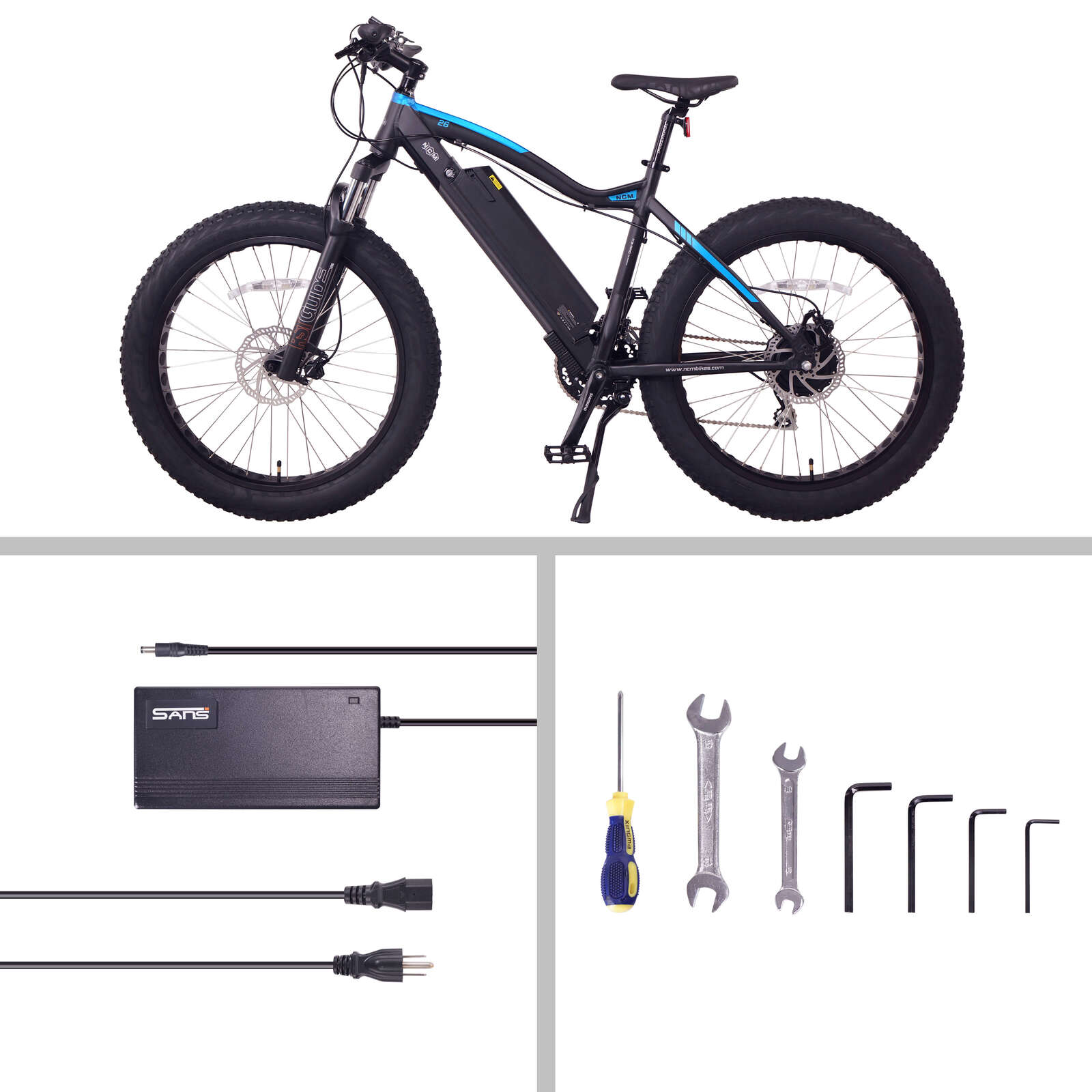

- 1 x Aspen + e-bike
- 1 x DC483DE 48v charger
- 1 x tool kit
