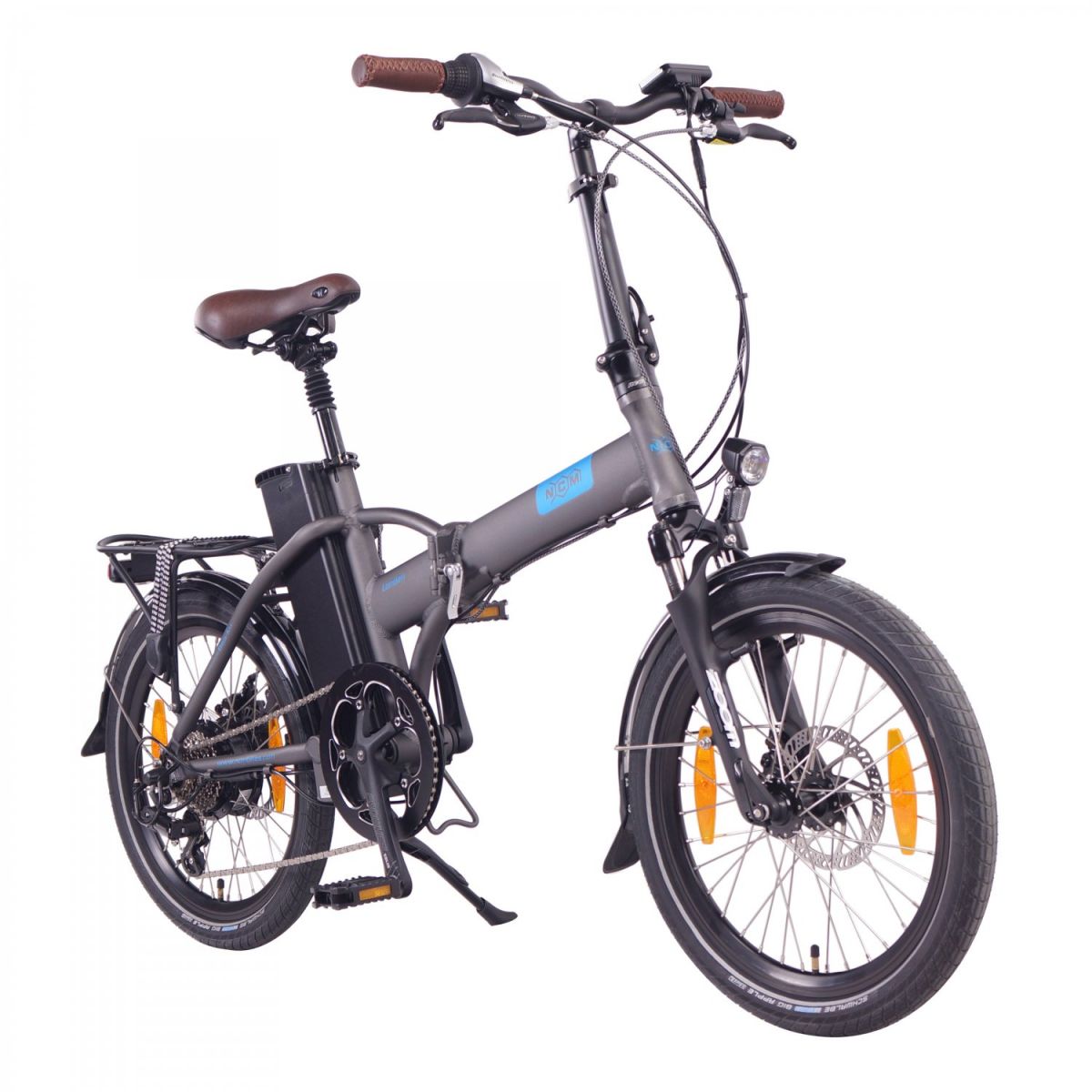

The NCM London is a highly versatile folding E-bike as it can be compacted without tools for even the smallest storage spaces with its folding frame, stem, pedals and saddle: take it with you when you go on vacation; ride it to your office and park it right next to your chair; or store it at home beside the shoe rack with no inconvenience. The step-through frame makes repeated mounting and dismounting effortless for when you’re shopping or running errands, and a unique feature of the electronics system allows the motor to run at 4mph without the need for pedalling—perfect for navigating through heavy foot traffic or riding casually alongside someone who is walking.
Foldable handlebar stem
Ergonomic bicycle Grips
Confortable sitting posture
Easy handling of the components
Foldable bicycle handlebar stem
All important controls easily accessible
supplied with 36V to deliver a high output power
Battery behind seat tube for a better balance
easily removable battery so you can charge it anywhere
A built-in USB port with 5V to charge mobile phones
Safe braking performance
Reliable mechanical disc brake system. The 160 mm Tektro brake disc ensures powerful and safe braking at all speeds.
Reliable mechanical disc brake system from Tektro. This brake system ensures powerful and safe braking at all speeds.
Das-Kit system with a high-contrast LCD display provides all important information at a glance and can also
be read easily in direct sunlight. The LCD display gives good feedback, is extremely robust and easy to use. The additional power can be individually controlled via six support levels. It is protected against dirt and splash water.
The rear engine delivers a full torque up to 35 Nm with 250W rated power and 36V voltage.
A large display shows all necessary settings.
6 support levels and a pushing aid of up to 6 km/h are adjustable.
The display's control buttons are deliberately placed on the left side - close to the left hand - so the driver can easily switch between support levels or displays without having to lift his hand off the handlebars.
Quality inspection and final adjustment:
In order to ensure our high quality standard, our bicycles are subjected to a functional test at the factory. This can lead to dust deposits on the tyres and the seat post. Our bikes are only delivered pre-assembled, a final fine adjustment and inspection by the buyer or a third party is necessary (costs incurred for this cannot be covered). Before driving, please check all screws for strength and carry out a fine adjustment of the gears and brakes. Check the tyre pressure. Depending on the bicycle model, the final assembly and inspection of the components should take between 60 and 90 minutes.
NCM London 36V 15Ah Details
Weight: 25kg (55lbs)
Type: Folding Wheel size: 20”
Load capacity: 125kg (264lbs)
Maximum speed: 25km/h
Ratings: DC 36V, 15Ah, 540Wh
Display: Das-Kit, L6B, LCD, 6 Levels, 6km/h walk mode
Seat Post: CL, PB-523, with suspension, 27.2*350mm
Grips: Selle Royal, brown synthetic leather
Pedals: Wellgo, foldable
1 year warranty on all electronic parts (including battery, motor, controller, display, lights)
2 year warranty on the bike frame
Apart from manufacture defects that could be present, parts that wear due to normal use (such as tyres, brake pads, chains, etc) are not included in the warranty but maybe replaced on a case by case basis within the first 6 months.
Disclaimer: Once you received the e-bike, we recommend to have it assembled by a professional in bike shops near you and also get your bike serviced after 1 month of use to ensure all aspects of the bike are set and calibrated correctly.

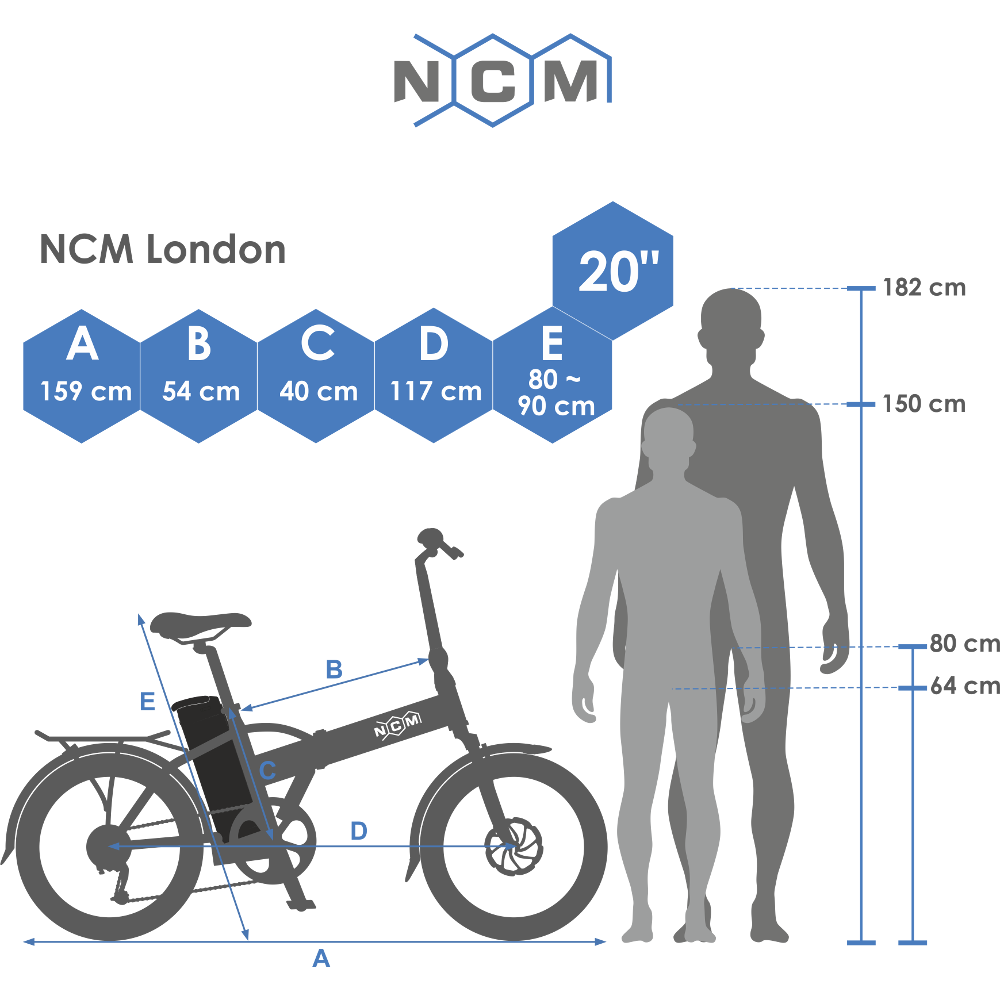

NCM London Dimensions
Please note: These values are minimum and maximum values for the bike to be properly rideable. The bike will be most comfortable near the middle of the range indicated. The minimum value should be treated as the absolute minimum, as anything lower may result in the rider not being able to reach the pedal at the bottom of the crank cycle. Using inseam length is much more accurate and appropriate for bike sizing than height. The frame size of a bike is generally governed by the length of the seat tube.
Using inseam length is much more accurate and appropriate for bike sizing than height. The frame size of a bike is generally governed by the length of the seat tube.
The frame size of a bike is generally governed by the length of the seat tube.
IMPORTANT NOTICE: The laws around the use of scooters/e-bikes on public lands, roads and areas vary from state to state. We recommend you always check your local council and road traffic laws prior to using a scooter/e-bike to ensure you are aware of any restrictions that may affect the use of motorised vehicles. Always use appropriate protective riding equipment such as an approved helmet and suitable clothing.
