Motor |
High torque 250w |
Battery |
Samsung 48V 12Ah |
Brakes |
Non hydraulic - 180/160MM
|
Gears |
Shimano, Altus M310, 3 x 7 speed
|
Wheel Size |
26', 27.5" and 29''
|
Suspension
|
Suntour XCT |
Electric Parts Warranty
|
01 Year |

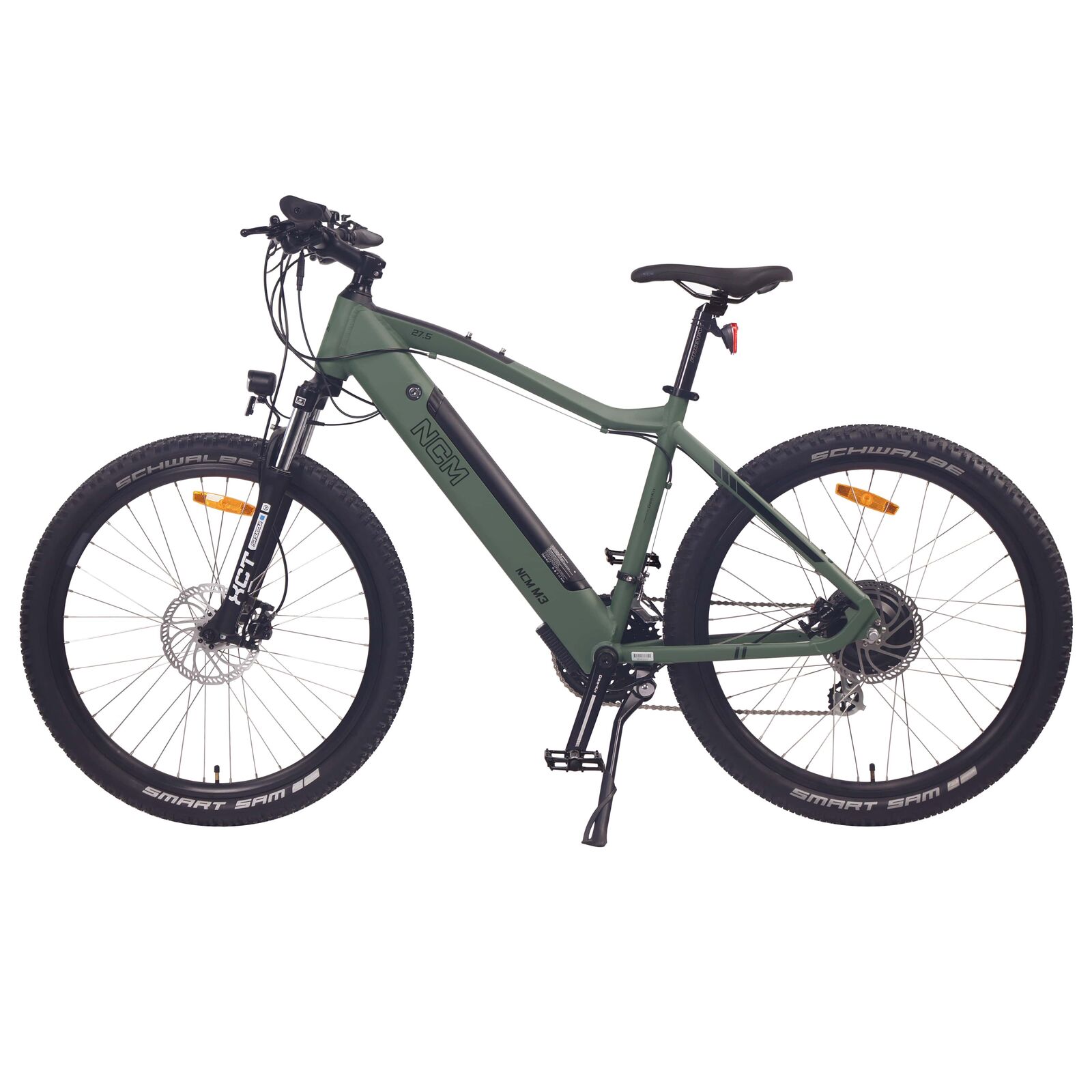

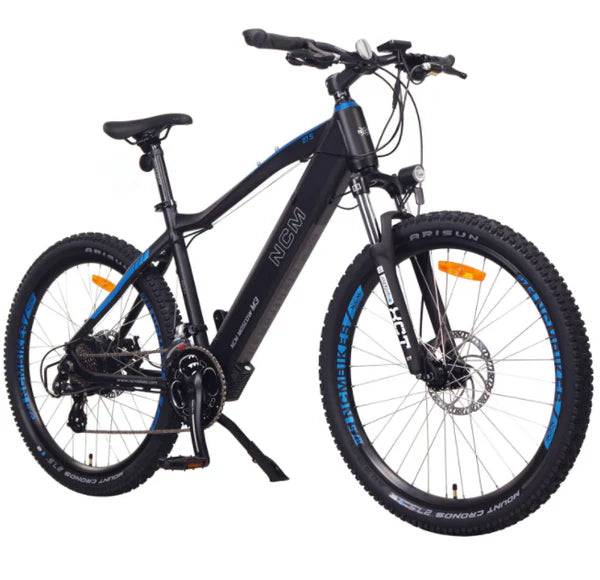

NCM Moscow M3
Introduction
Compared to old Moscow, Moscow M3 is built with a reinforced integrated battery and lightweight black battery cover to save weight and to make it easier to carry. Additionally, this model finally comes with the custom front light to enhance visibility and is easier to spot in traffic. Rugged and capable, Moscow M3 still keeps all the features of a high-performance electric mountain bike.
Key Features
- Reinforced integrated battery
- Custom front light to enhance visibility
- Easily removable battery to charge it anywhere
- Reach up to 110km (depending on the conditions)
- A built-in USB port with 5V to charge mobile phones
- Ergonomic bicycle grips
- Comfortable sitting posture
- All the important controls easily accessible
Das-Kit 250W Motor
Tektro Disc Brakes
48V Integrated and Removable Battery
Custom Front Light
Specifications
|
Moscow M3 |
Moscow Plus |
Moscow |
Motor
|
Das-Kit X15 motor, 48V 250W, max speed 25 km/h |
Das-Kit X2 motor, 48V 250W, max speed 25 km/h |
Das-Kit X15 motor, 48V 250W,max speed 25 km/h
|
Battery
|
Das-Kit, I6, 48V 12Ah, 576Wh |
DEHAWK, I5, 48V 16Ah, 768Wh with USB Port |
DEHAWK, I5, 48V 13Ah, 624Wh with USB Port |
Display
|
Das-Kit L7, LCD Display |
Das-Kit C7 Advanced, LCD Display |
Das-Kit L7, LCD Display |
Charger
|
Das-Kit, 48V 2A |
DC483DE 48V 3A |
DC483DE 48V 3A |
Frame
|
Alu. 6061 26"*460MM | 27.5"*480MM | 29"*520MM |
Alu. 6061, 19/20*480/510MM |
Alu. 6061, 19/20*480/510MM |
Forks
|
SUNTOUR XCT |
SUNTOUR XCM |
SUNTOUR XCT |
Braking System
|
Tektro Disc |
Tektro Hydraulic Disc |
Tektro Mechanical Disc |
Gear Selector
|
Shimano Altus 7 speed |
Shimano Acera 8 speed |
Shimano Altus 7 speed |
Front Derailleur
|
Shimano Altus Triple |
Shimano Acera Triple |
Shimano Altus Triple |
Rear derailleur
|
Shimano Altus, 7 speed |
Shimano Acera, 8 speed |
Shimano Altus, 7 speed |
Saddle
|
NCM Velo, VL-3410 |
Selle Royal, Lookin-A200UR, Black |
NCM Velo, VL-3410 |
Tyre
|
Arisun Mount Cronos |
Schwalbe, Smart Sam 27.5×2.25 29×2.25 |
Schwalbe, Smart Sam 27.5×2.25 29×2.25 |
Handle Grips
|
Velo, VLG-1189D3 |
Velo, VLG-1189D3 139mm |
Velo, VLG-1189D3 139mm |
Pedal
|
Wellgo, B087 |
Wellgo, B087 |
Wellgo, B087 |
Range
|
110 km |
150 km |
120 km |
Weight
|
25 kg |
28/29 kg |
28/29 kg |
Sizing Chart
CM |
|
A |
B |
C |
D |
E |
F |
|
|
Stand Over Height |
Wheel Base |
Frame Size |
Min / Max Seat Height |
Reach |
Overall Length
|
Moscow M3 26"
|
160-185
|
70
|
103
|
47
|
84/103
|
53
|
178
|
Moscow M3 27.5" |
162-187 |
76.2 |
108 |
48.2 |
86.8 / 103 |
53 |
180 |
Moscow M3 29" |
175-193 |
82.5 |
110 |
50.8 |
88.9 / 106 |
53 |
185 |
Warranty
- 1 year warranty on all electronic parts (including battery, motor, controller, display, lights)
- 2 year warranty on the bike frame
- Apart from manufacture defects that could be present, parts that wear due to normal use (such as tires, brake pads, chains, spokes, freewheel, tire puncture etc) are not included in the warranty but maybe replaced on a case by case basis within the first 6 months.
- Our bikes are water resistant but not waterproof. Water damage is not covered under warranty.
About NCM
NCM Bikes, founded in 2014, has quickly become one of the largest pedelec and e-bike brands in Europe with the goal of expanding the market significantly in the near future. NCM is the perfect brand to start your pedelec experience whether you are an avid cyclist or a relative newcomer, we are committed to providing you with a range of high quality. Our innovative technologies ensure that we can differentiate ourselves from the competition and continue to offer the latest technologies. Our goal is to help improve the environment through a friendly riding experience and the promotion of a fun and active lifestyle.
Notes
In order to ensure our high quality standard, our bicycles are subjected to a functional test at the factory. This can lead to dust deposits on the tyres and the seat post. Our bikes are only delivered pre-assembled, a final fine adjustment and inspection by the buyer or a third party is necessary (costs incurred for this cannot be covered). Before riding, please check all screws for strength and carry out a fine adjustment of the gears and brakes. Check the tyre pressure. Depending on the bicycle model, the final assembly and inspection of the components should take between 60 and 90 minutes.
IMPORTANT NOTICE:
The laws around the use of scooters/e-bikes on public lands, roads and areas vary from state to state.
We recommend you always check your local council and road traffic laws prior to using a scooter/e-bike to ensure you are aware of any restrictions that may affect the use of motorised vehicles.
Always use appropriate protective riding equipment such as an approved helmet and suitable clothing.
In the box
- 1 x NCM Moscow M3 e-bike
- 1 x DC483DE 48v charger
- 1 x tool kit
