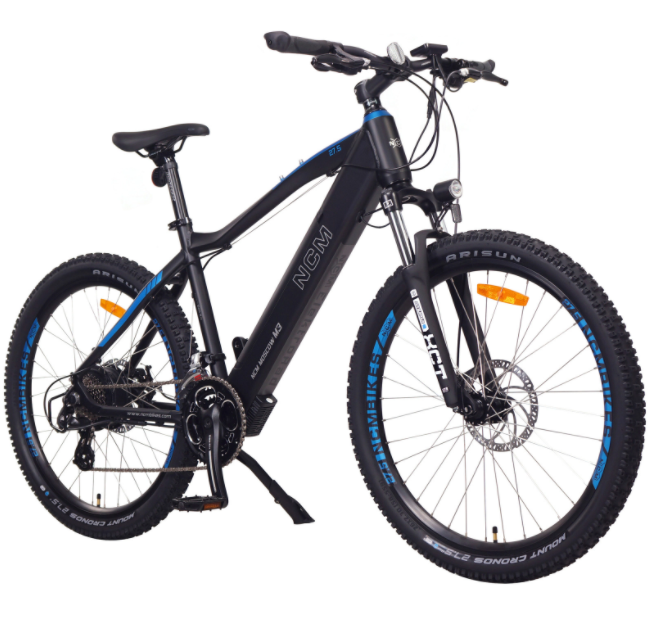

NCM Moscow M3 Electric Mountain Bike, 250W E-MTB, 576Wh Battery
NCM Moscow M3 Electric Mountain Bike, 250W E-MTB, 576Wh Battery
26" / Black / 2025 version with Hydraulic Disc Brakes
Move Bikes Shop
640 Crown Street
Surry Hills NSW 2010
Australia
The NCM M3 is an e-mountain bike designed for beginners that prioritizes top-quality components. It remains durable and efficient even on challenging mountain trails, offering a perfect balance of range and performance while still being accessible and user-friendly.
Suspension Fork: Suntour, XCT
Brake: Disc Brakes
Freewheel: 7 Speed, 14-28T
Tyre: Arisun Mount Cronos
Saddle: VELO, VL-3410
Stem: Promax, Alu.MA-471
Crank: DAS-KIT, CM48,28/38/48T
Shifter Left: Shimano, Altus, F: SL-M315-L, 3 Speed
Shifter Right: Shimano, Altus, R: SL-M315-7R, 7 Speed
Front Derailleur: Shimano, Altus, FD-M313
Rear Derailleur: Shimano, Altus, RD-M310
Chain: KMC, Z51
ELECTRIC COMPONENTS
Battery: Das-Kit, i6-4812, 48V 12AH, 576WH
Motor: Das-Kit, X15, Rear drive motor, 48V 250W - 500W , 25KM/H
Controller: Das-Kit, CT-i6, 48V18A
Charger: Das-Kit, 48V2A
Display: Das-Kit, L7
Front Light: DH002, 48V, 40 Lux
WEIGHT
Net Weight (with battery): 26.0kg
Battery Weight: 3.4kg
Max Load (driver+bike): 125.0kg
| Motor | High torque 250w - 500W |
| Battery | Samsung 48V 12Ah |
| Throttle | Up to 25 km/h |
| Brakes | Non hydraulic - 180/160MM |
| Gears | Shimano, Altus M310, 3 x 7 speed |
| Wheel Size |
26', 27.5" and 29''
|
| Suspension | Suntour XCT |
| Electric Parts Warranty | 01 Year |
NCM Moscow M3
Introduction
Key Features
- Reinforced integrated battery
- Custom front light to enhance visibility
- Easily removable battery to charge it anywhere
- Reach up to 110km (depending on the conditions)
- A built-in USB port with 5V to charge mobile phones
- Ergonomic bicycle grips
- Comfortable sitting posture
- All the important controls easily accessible
Das-Kit 250W Motor
.jpg)
Tektro Disc Brakes
48V Integrated and Removable Battery
Custom Front Light
Specifications
| Moscow M3 | Moscow Plus | Moscow | |
 Motor
|
Das-Kit X15 motor, 48V 250W, max speed 25 km/h | Das-Kit X2 motor, 48V 250W, max speed 25 km/h |
Das-Kit X15 motor, 48V 250W,max speed 25 km/h |
 Battery
|
Das-Kit, I6, 48V 12Ah, 576Wh | DEHAWK, I5, 48V 16Ah, 768Wh with USB Port | DEHAWK, I5, 48V 13Ah, 624Wh with USB Port |
 Display
|
Das-Kit L7, LCD Display | Das-Kit C7 Advanced, LCD Display | Das-Kit L7, LCD Display |
 Charger
|
Das-Kit, 48V 2A | DC483DE 48V 3A | DC483DE 48V 3A |
 Frame
|
Alu. 6061 26"*460MM | 27.5"*480MM | 29"*520MM | Alu. 6061, 19/20*480/510MM | Alu. 6061, 19/20*480/510MM |
 Forks
|
SUNTOUR XCT | SUNTOUR XCM | SUNTOUR XCT |
 Braking System
|
Tektro Disc | Tektro Hydraulic Disc | Tektro Mechanical Disc |
 Gear Selector
|
Shimano Altus 7 speed | Shimano Acera 8 speed | Shimano Altus 7 speed |
 Front Derailleur
|
Shimano Altus Triple | Shimano Acera Triple | Shimano Altus Triple |
 Rear derailleur
|
Shimano Altus, 7 speed | Shimano Acera, 8 speed | Shimano Altus, 7 speed |
 Saddle
|
NCM Velo, VL-3410 | Selle Royal, Lookin-A200UR, Black | NCM Velo, VL-3410 |
 Tyre
|
Arisun Mount Cronos | Schwalbe, Smart Sam 27.5×2.25 29×2.25 | Schwalbe, Smart Sam 27.5×2.25 29×2.25 |
 Handle Grips
|
Velo, VLG-1189D3 | Velo, VLG-1189D3 139mm | Velo, VLG-1189D3 139mm |
 Pedal
|
Wellgo, B087 | Wellgo, B087 | Wellgo, B087 |
 Range
|
110 km | 150 km | 120 km |
 Weight
|
25 kg | 28/29 kg | 28/29 kg |
Sizing Chart
| CM | A | B | C | D | E | F | |
|---|---|---|---|---|---|---|---|
 |
Stand Over Height | Wheel Base | Frame Size | Min / Max Seat Height | Reach |
Overall Length |
|
|
Moscow M3 26" |
160-185 |
70 |
103 |
47 |
84/103 |
53 |
178 |
| Moscow M3 27.5" | 162-187 | 76.2 | 108 | 48.2 | 86.8 / 103 | 53 | 180 |
| Moscow M3 29" | 175-193 | 82.5 | 110 | 50.8 | 88.9 / 106 | 53 | 185 |
Warranty
- 1 year warranty on all electronic parts (including battery, motor, controller, display, lights)
- 2 year warranty on the bike frame
- Apart from manufacture defects that could be present, parts that wear due to normal use (such as tires, brake pads, chains, spokes, freewheel, tire puncture etc) are not included in the warranty but maybe replaced on a case by case basis within the first 6 months.
- Our bikes are water resistant but not waterproof. Water damage is not covered under warranty.
About NCM
Notes
In order to ensure our high quality standard, our bicycles are subjected to a functional test at the factory. This can lead to dust deposits on the tyres and the seat post. Our bikes are only delivered pre-assembled, a final fine adjustment and inspection by the buyer or a third party is necessary (costs incurred for this cannot be covered). Before riding, please check all screws for strength and carry out a fine adjustment of the gears and brakes. Check the tyre pressure. Depending on the bicycle model, the final assembly and inspection of the components should take between 60 and 90 minutes.
IMPORTANT NOTICE:
The laws around the use of scooters/e-bikes on public lands, roads and areas vary from state to state.
We recommend you always check your local council and road traffic laws prior to using a scooter/e-bike to ensure you are aware of any restrictions that may affect the use of motorised vehicles.
Always use appropriate protective riding equipment such as an approved helmet and suitable clothing.
In the box
- 1 x NCM Moscow M3 e-bike
- 1 x DC483DE 48v charger
- 1 x tool kit
Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas.
